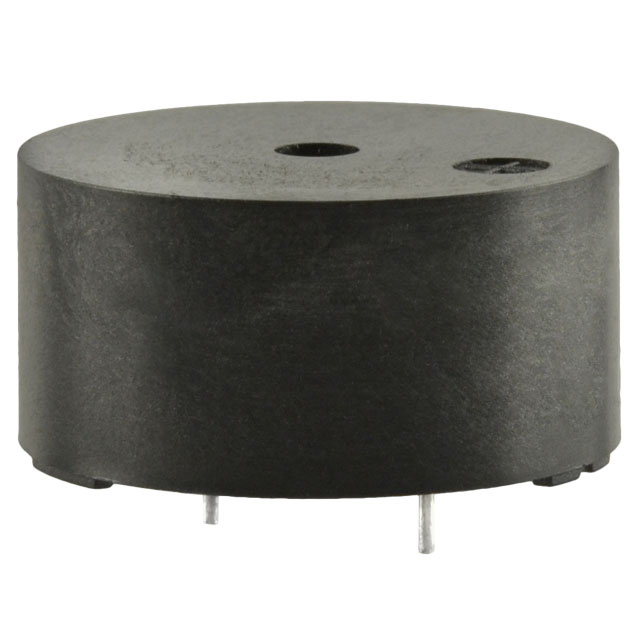

CMT-2412C-120

Active

CUI Devices

AUDIO BUZZER MAGNETIC 10VO-P 14VO-P 100MA 12VO-P 90DB THROUGH HOLE PIN TRAY

Search across all available documentation for this part.

Active

CUI Devices

AUDIO BUZZER MAGNETIC 10VO-P 14VO-P 100MA 12VO-P 90DB THROUGH HOLE PIN TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	CMT-2412C-120

Current - Supply	100 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	1 kHz
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	0.965 "
Size / Dimension [diameter]	24.5 mm
Sound Pressure Level (SPL)	90 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	10 VDC

Part	Technology	Voltage - Rated	Termination	Sound Pressure Level (SPL)	Input Type	Mounting Type	Current - Supply	Frequency	Driver Circuitry	Voltage Range [Max]	Voltage Range [Min]	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Port Location	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]
CUI Devices CMT-2412C-120	Magnetic	12 VDC	PC Pins	90 dB	Zero-Peak Signal	Through Hole	100 mA	1 kHz	Externally Driven Transducer	14 V	10 VDC	Single Tone	85 °C	-40 °C	13 mm	0.512 "	Top	Washable	0.965 "	24.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.28

General part information

Buzzers Transducer, Externally Driven Magnetic 12 V 100mA 1kHz 90dB @ 12V, 10cm Through Hole PC Pins
