TFA9882UK/N2Z

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS D MONO 3.4W 9WLCSP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS D MONO 3.4W 9WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9882UK/N2Z

Features	Mute, Overvoltage, Undervoltage, Short-Circuit, Depop, Thermal Protection, I2S
Max Output Power x Channels @ Load	3.4 W
Max Output Power x Channels @ Load [custom]	4 Ohm
Max Output Power x Channels @ Load [custom]	1
Mounting Type	Surface Mount
Output Type	1-Channel (Mono)

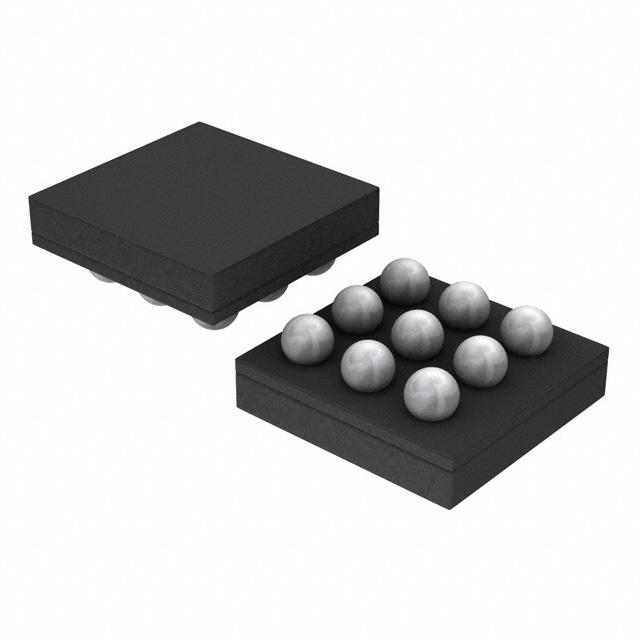

Package / Case	9-UFBGA, WLCSP
Supplier Device Package	9-WLCSP (1.5x1.28)
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Output Type	Package / Case	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Mounting Type	Max Output Power x Channels @ Load [custom]
Freescale Semiconductor - NXP TFA9887UK/N2BZ	2.5 V	5.5 V	85 °C	-40 °C	Class D	Depop Short-Circuit Thermal Protection	1-Channel (Mono)	29-UFBGA WLCSP	2.65 W 4 Ohm	1	29-WLCSP	2.07	3.19	Surface Mount
Freescale Semiconductor - NXP TFA9887UK/N2AZ	2.5 V	5.5 V	85 °C	-40 °C	Class D	Depop Short-Circuit Thermal Protection	1-Channel (Mono)	29-UFBGA WLCSP	2.65 W 4 Ohm	1	29-WLCSP	2.07	3.19	Surface Mount
Freescale Semiconductor - NXP TFA9881UK/N1,118	2.5 V	5.5 V			Class D	Depop Overvoltage Short Circuit Thermal Protection	1-Channel (Mono)	9-UFBGA WLCSP	3.4 W	1	9-WLCSP (1.3x1.3)			Surface Mount	4 Ohm
Freescale Semiconductor - NXP TFA9882UK/N2Z	2.5 V	5.5 V			Class D	Depop I2S Mute Overvoltage Short-Circuit Thermal Protection Undervoltage	1-Channel (Mono)	9-UFBGA WLCSP	3.4 W	1	9-WLCSP (1.5x1.28)			Surface Mount	4 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 9-WLCSP (1.5x1.28)

Technical documentation and resources

No documents available
