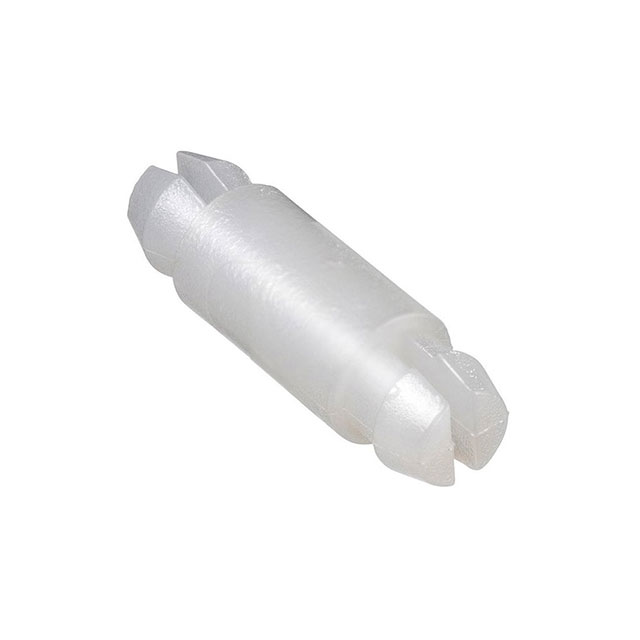

R6008-00
ActiveHarwin Inc.
8.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R6008-00
ActiveHarwin Inc.
8.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R6008-00 |
|---|---|
| Between Board Height [z] | 0.315 in |
| Between Board Height [z] | 8 mm |
| Holding Type | Snap Fit |
| Length - Overall [x] | 15.6 mm |
| Length - Overall [x] | 0.614 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.157 " |
| Mounting Hole Diameter [diameter] | 4 mm |
| Mounting Panel Thickness | 0.063 in |
| Mounting Panel Thickness | 1.6 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R6008 Series
Board Support Snap Fit / Snap Lock Nylon 0.315" (8.00mm)
