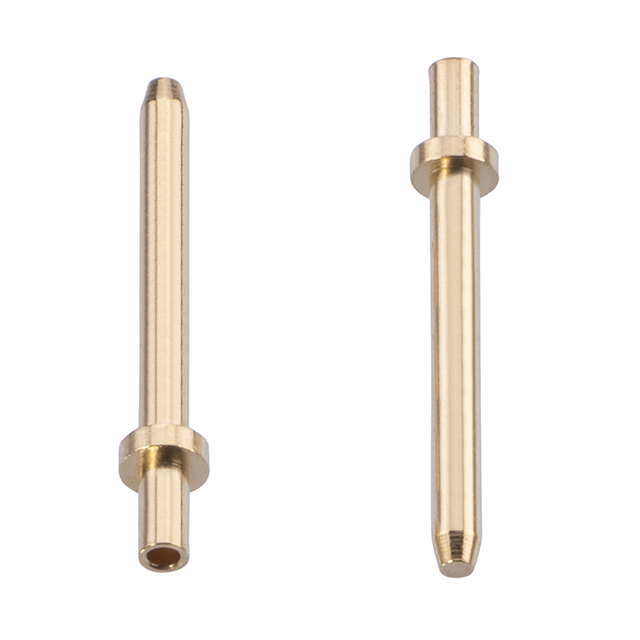

H2176-05

Active

Harwin Inc.

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2176-05

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Gold
Contact Material	Brass
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Insulation	Non-Insulated
Length - Above Flange [custom]	0.355 in
Length - Above Flange [custom]	9.02 mm
Length - Below Flange [x]	0.082 in
Length - Below Flange [x]	2.08 mm
Length - Overall	0.457 in
Length - Overall	11.61 mm
Mounting Hole Diameter [Max]	0.045 "
Mounting Hole Diameter [Max]	1.14 mm
Mounting Hole Diameter [Min]	0.041 in
Mounting Hole Diameter [Min]	1.04 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.041 in
Pin Size - Above Flange [diameter]	1.04 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Terminal Type	Length - Above Flange [custom]	Length - Above Flange [custom]	Terminal Style	Insulation	Contact Material	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Mounting Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Length - Overall	Length - Overall	Contact Finish	Termination	Length - Below Flange [x]	Length - Below Flange [x]	Board Thickness	Board Thickness
Harwin Inc. H2176-05	PC Pin	0.355 in	9.02 mm	Single End	Non-Insulated	Brass	0.041 in	1.04 mm	Through Hole	1.77 mm	0.07 in	0.045 "	1.14 mm	0.041 in	1.04 mm	0.457 in	11.61 mm	Gold	Swage	0.082 in	2.08 mm	1.6 mm	0.063 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia
