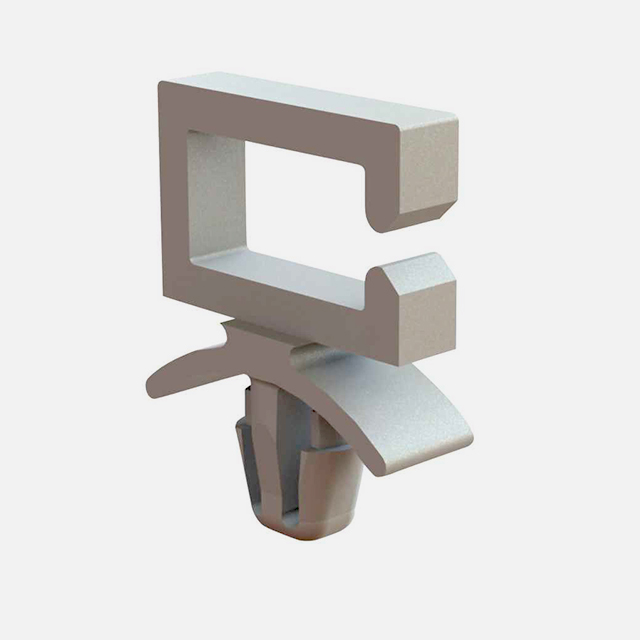

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 10.2 MM, 3.2 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 10.2 MM, 3.2 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WS-SE-A-1-01

Color	Natural
Height [z]	0.42 "
Height [z]	10.67 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [x]	10.16 mm
Opening Size [x]	0.4 in
Opening Size [y]	5.59 mm
Opening Size [y]	0.22 in
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Panel Thickness [Max]	0.078 in
Panel Thickness [Max]	1.98 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Type	Clip, Wire Saddle
Type Attributes	Side Entry
Width [x]	0.22 in
Width [x]	5.59 mm

Part	Panel Hole Size	Panel Hole Size	Opening Size [x]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Color	Width	Width	Length	Length	Type Attributes	Height [z]	Height [z]	Material Flammability Rating	Type	Material	Mounting Type	Width [y]	Width [y]	Length [x]	Length [x]	Width [x]	Width [x]	Panel Thickness [Max]
Essentra Access Solutions WS-SE3-1-01	7.98 mm	0.314 in	6.83 mm	0.118 in	3 mm	0.269 in	0.102 in	2.59 mm	1.57 mm	0.062 in	Natural	0.551 in	14 mm	0.708 in	17.98 mm	Side Entry	5.59 mm	0.22 in	UL94 V-2	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	Arrowhead
Essentra Access Solutions WS-SE-A-3-01	4.8 mm	0.189 in	11.94 mm	0.47 in	11.94 mm	0.47 in		0.071 in 1.8 mm	0.61 mm	0.024 in	Natural					Side Entry	18.03 mm	0.71 in	UL94 V-2	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	Arrowhead Winged	0.28 in	7.11 mm	18.29 mm	0.72 in
Essentra Access Solutions WS-SE-A-1-01	4.75 mm	0.187 in	10.16 mm	0.22 in	5.59 mm	0.4 in	0.078 in		0.79 mm	0.031 "	Natural					Side Entry	10.67 mm	0.42 "	UL94 V-2	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	Arrowhead Winged					0.22 in	5.59 mm	1.98 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.400" L x 0.220" H (10.16mm x 5.59mm)
