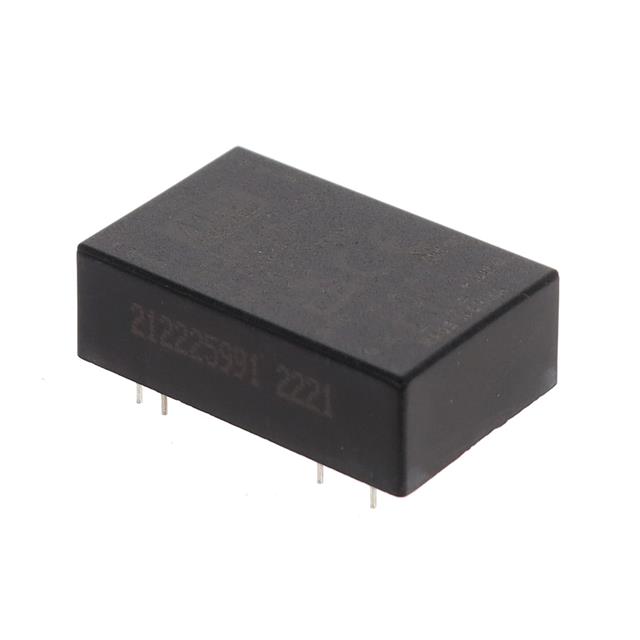

RSDW08F-15
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSDW08F-15
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSDW08F-15 |
|---|---|
| Applications | Railway |
| Approval Agency | CE, EAC |
| Current - Output (Max) [Max] | 530 mA |
| Efficiency | 85 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 50155 |
| Supplier Device Package | 24-DIP |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 18.05 | |
| 5 | $ 17.91 | |||
| 10 | $ 17.78 | |||
Description
General part information
RSDW08F Series
Isolated Module DC DC Converter 1 Output 15V 530mA 9V - 36V Input
