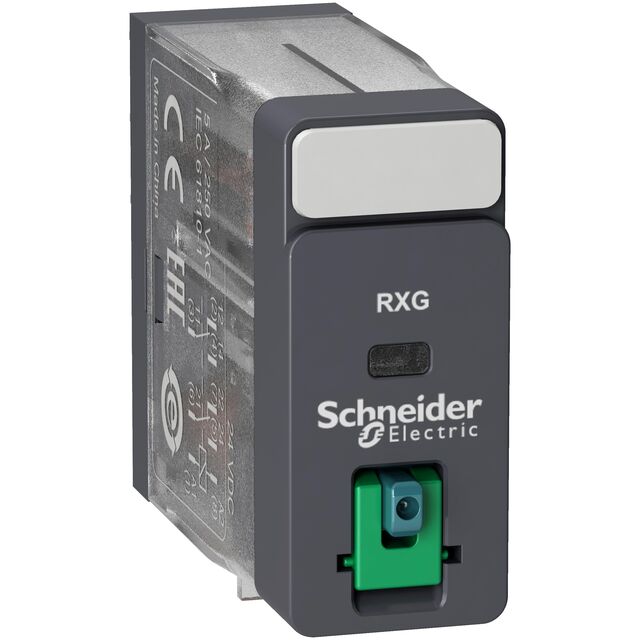

RXG21JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO 5A@250VAC 12VDC COIL L

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RXG21JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO 5A@250VAC 12VDC COIL L

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RXG21JD

Approval Agency	UL, CE, DNV-GL, EAC, CSA
Coil Current	44.4 mA
Coil Insulation	Class F
Coil Resistance	270 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	5 A
Features	Test Button
Load - Max Switching	1250 VA, 150 W
Mounting Type	Socketable
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

RXG21 Series

Part	Coil Type	Features	Switching Voltage [Max]	Release Time	Contact Material	Contact Rating (Current)	Relay Type	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Release Voltage	Coil Voltage	Termination Style	Approval Agency	Operate Time	Contact Form	Coil Insulation	Coil Current	Coil Resistance	Must Operate Voltage
SQUARE D BY SCHNEIDER ELECTRIC RXG21B7	Non Latching	Lighted Indicator	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Socketable	7.2 VAC	24 VAC	Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)
SQUARE D BY SCHNEIDER ELECTRIC RXG21RD	Non Latching	Test Button	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Chassis Mount	0.6 VDC		Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)	Class F	88.2 mA	68 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXG21E7	Non Latching	Test Button	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Socketable	14.4 VAC	48 VAC/DC	Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)				38.4 VAC
SQUARE D BY SCHNEIDER ELECTRIC RXG21BD	Non Latching	Lighted Indicator	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Socketable	2.4 VDC	24 VDC	Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)
SQUARE D BY SCHNEIDER ELECTRIC RXG21JD	Non Latching	Test Button	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Socketable	1.2 VDC	12 VDC	Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)	Class F	44.4 mA	270 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXG21P7	Non Latching	Test Button	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Socketable	69 VAC	230 VAC	Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)				184 VAC
SQUARE D BY SCHNEIDER ELECTRIC RXG21F7	Non Latching	Test Button	30 VDC 250 VAC	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	5 A	General Purpose	150 W 1250 VA	-40 °C	70 °C	Socketable	36 VAC	120 VAC	Plug In	CE CSA DNV-GL EAC UL	20 ms	DPDT (2 Form C)	Class F	19 mA	6.3 kOhms	96 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 6.69

Description

General part information

RXG21 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
