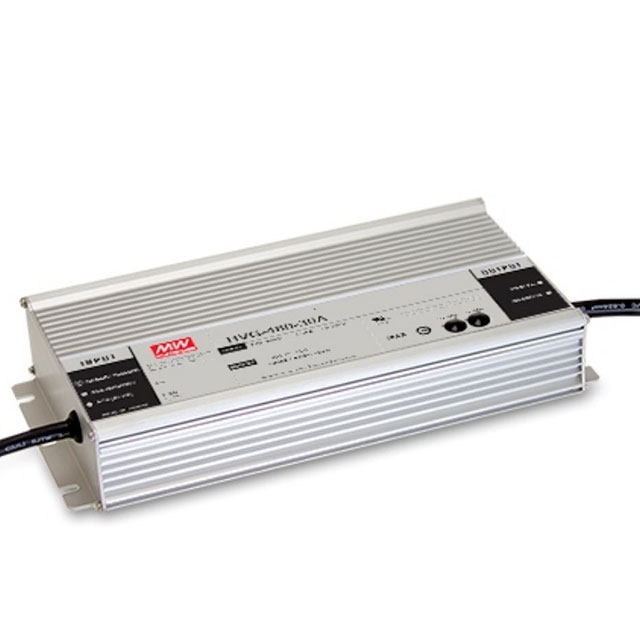

HVG-480-24D2

Active

MEAN WELL USA Inc.

I/P 180~528VAC O/P +24V20A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

I/P 180~528VAC O/P +24V20A

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max)	Voltage - Output [Max]	Voltage - Output [Min]	Mounting Type	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Efficiency	Power (Watts)	Ratings	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Current - Output (Max) [Max]	Approval Agency	Voltage - Output	Dimming
MEAN WELL USA Inc. HVG-480-54A	1	180 VAC	OCP OTP OVP SCP	528 VAC	56.7 V	45.9 V	Chassis Mount	AC DC Converter	85 °C	-40 °C	Constant Current Voltage	Wire Leads	95 %	481 W	IP65	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	3750 V	8.9 A
MEAN WELL USA Inc. HVG-480-24D2	1	180 VAC	OCP OTP OVP SCP	528 VAC			Chassis Mount	AC DC Converter	85 °C	-40 °C	Constant Current Voltage	Wire Leads	94 %	480 W	IP67	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	3750 V	20 A	cURus EAC FCC	24 V
MEAN WELL USA Inc. HVG-480-48B	1	180 VAC	OCP OTP OVP SCP	528 VAC	48 V	24 V	Chassis Mount	AC DC Converter	85 °C	-40 °C	Constant Current Voltage	Wire Leads	95 %	480 W	IP67	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	3750 V	10 A			Analog PWM
MEAN WELL USA Inc. HVG-480-24A	1	180 VAC	OCP OTP OVP SCP	528 VAC	25.2 V	20.4 V	Chassis Mount	AC DC Converter	85 °C	-40 °C	Constant Current Voltage	Wire Leads	94 %	480 W	IP65	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	3750 V	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	4	$ 182.40

General part information

20A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
