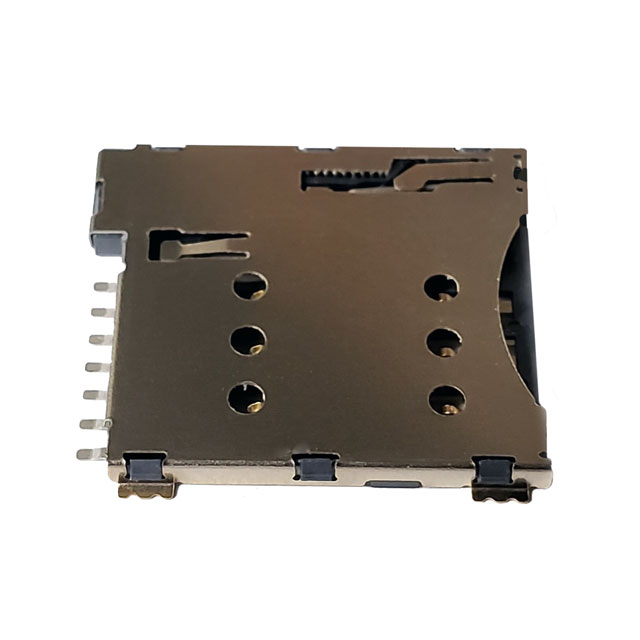

MSCCP-A1-06-SG-SW-T/R
ActiveAdam Tech
CONN MICRO SIM CARD PIN 6 POS 1.27MM PITCH SOLDER RA SMD
Deep-Dive with AI
Search across all available documentation for this part.
MSCCP-A1-06-SG-SW-T/R
ActiveAdam Tech
CONN MICRO SIM CARD PIN 6 POS 1.27MM PITCH SOLDER RA SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSCCP-A1-06-SG-SW-T/R |
|---|---|
| Card Type | Micro SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch |
| Height Above Board [z] | 0.053 in |
| Height Above Board [z] | 1.35 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.06 | |
| 10 | $ 2.34 | |||
| 25 | $ 2.11 | |||
| 50 | $ 1.95 | |||
| 100 | $ 1.81 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.52 | |||
| Digi-Reel® | 1 | $ 3.06 | ||
| 10 | $ 2.34 | |||
| 25 | $ 2.11 | |||
| 50 | $ 1.95 | |||
| 100 | $ 1.81 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.52 | |||
| Tape & Reel (TR) | 1000 | $ 1.42 | ||
| 2000 | $ 1.32 | |||
| 3000 | $ 1.27 | |||
| 5000 | $ 1.21 | |||
| 7000 | $ 1.19 | |||
Description
General part information
MSCCP-A1 Series
8 (6 + 2) Position Card Connector Micro SIM Surface Mount, Right Angle Gold
