ATS-EXL65-1220-R0

Active

Advanced Thermal Solutions Inc.

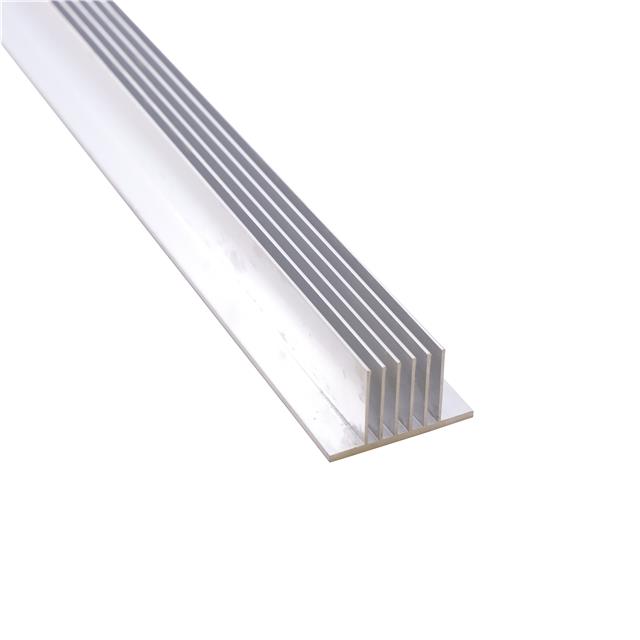

HEAT SINKS EXTRUSION PROFILE, AL6063, LENGTH 1220MM, WIDTH 25MM, HEIGHT 25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Extrusion Profiles Datasheet +1

ATS-EXL65-1220-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS EXTRUSION PROFILE, AL6063, LENGTH 1220MM, WIDTH 25MM, HEIGHT 25MM

Deep-Dive with AI

DocumentsDatasheet Extrusion Profiles Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-EXL65-1220-R0

Attachment Method	Adhesive
Fin Height	0.984 in
Fin Height	25 mm
Length [x]	48.032 in
Length [x]	1.22 m
Material	Aluminum
Material Finish	Degreased
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	4.5 °C/W, 200 LFM
Thermal Resistance @ Natural	11.7 °C/W
Type	Top Mount, Extrusion
Width [x]	1.614 in
Width [x]	41 mm

ATS-EXL Series

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

Part	Attachment Method	Material Finish	Type	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Width [y]	Width [y]	Shape	Material	Thermal Resistance @ Natural	Length [x]	Length [x]	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Width	Width	Fin Height [z]
Advanced Thermal Solutions Inc. ATS-EXL98-300-R0	Adhesive	Degreased	Top Mount Extrusion	0.95 °C/W 200 LFM	1.417 in	36 mm	4.724 "	120 mm	Rectangular Fins	Aluminum	4.69 °C/W	300 mm	11.811 in
Advanced Thermal Solutions Inc. ATS-EXL65-1220-R0	Adhesive	Degreased	Top Mount Extrusion	4.5 °C/W 200 LFM	0.984 in	25 mm			Rectangular Fins	Aluminum	11.7 °C/W	1.22 m	48.032 in	1.614 in	41 mm
Advanced Thermal Solutions Inc. ATS-EXL110-1220-R0	Adhesive	Degreased	Top Mount Extrusion	0.72 °C/W 200 LFM					Rectangular Fins	Aluminum	2.47 °C/W	1.22 m	48.032 in	7.874 in	200 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-EXL76-300-R1	Adhesive	Degreased	Top Mount Extrusion	0.5 °C/W	1.575 "	40 mm			Rectangular Fins	Aluminum	5.2 °C/W	300 mm	11.811 in					93.4 mm	3.677 in
Advanced Thermal Solutions Inc. ATS-EXL67-1220-R0	Adhesive	Degreased	Top Mount Extrusion	5.8 °C/W	0.531 in	13.5 mm	1.083 "	27.5 mm	Rectangular Fins	Aluminum	21.7 °C/W	1.22 m	48.032 in
Advanced Thermal Solutions Inc. ATS-EXL103-300-R0	Adhesive	Degreased	Top Mount Extrusion	1.12 °C/W 200 LFM			4.528 in	115 mm	Rectangular Fins	Aluminum	4.61 °C/W	300 mm	11.811 in				1.323 in			33.6 mm
Advanced Thermal Solutions Inc. ATS-EXL61-1220-R0	Adhesive	Degreased	Top Mount Extrusion	29 °C/W 200 LFM					Rectangular Fins	Aluminum	57 °C/W	1.22 m	48.032 in					15 mm	0.591 in
Advanced Thermal Solutions Inc. ATS-EXL84-300-R0	Adhesive	Degreased	Top Mount Extrusion		0.984 in	25 mm	2.756 in	70 mm	Rectangular Fins	Aluminum		300 mm	11.811 in
Advanced Thermal Solutions Inc. ATS-EXL6-1220-R0	Adhesive	Degreased	Top Mount Extrusion	0.7 °C/W					Rectangular Fins	Aluminum	7.9 °C/W	1.22 m	48.032 in	3.967 in	100.76 mm	1.063 in	27 mm
Advanced Thermal Solutions Inc. ATS-EXL74-1220-R0	Adhesive	Degreased	Top Mount Extrusion	2.4 °C/W 200 LFM	0.59 "	15 mm	2.756 in	70 mm	Rectangular Fins	Aluminum	18.2 °C/W	1.22 m	48.032 in
