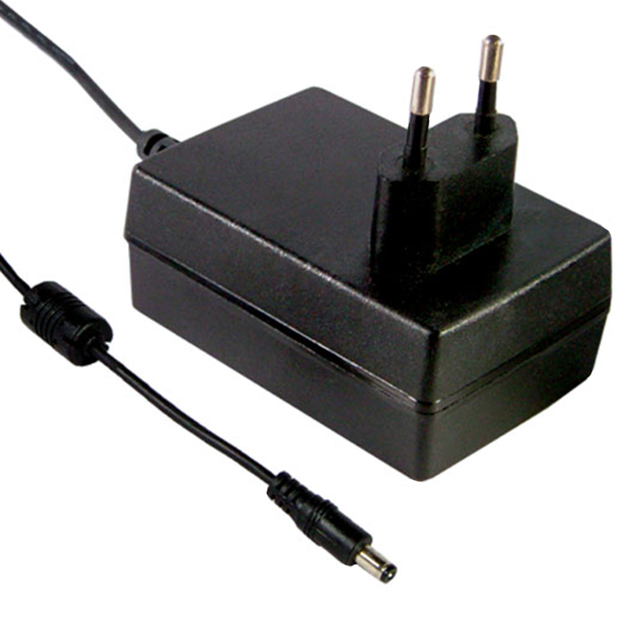

GSM36E24-P1J
ActiveMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 24V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSM36E24-P1J
ActiveMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 24V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSM36E24-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, TUV |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | CEE 7/16 |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | Europe |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.50 | |
| 5 | $ 15.70 | |||
| 10 | $ 15.10 | |||
| 25 | $ 14.60 | |||
Description
General part information
GSM36E24 Series
24V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
