20-101-0455
Digi
SBC 22.1MHZ 1CR 128KB/128KB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20-101-0455
Digi
SBC 22.1MHZ 1CR 128KB/128KB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-101-0455 |
|---|---|
| Analog Input:Output | 4:00 |
| Contents | Power Supply |
| Core Processor | Rabbit 2000 |
| Digital I/O Lines | 28 |
| Ethernet | 10 Mbps |
| Number of Cores | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 1.5 W |
| RAM Capacity/Installed | 128 KB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 87.12 mm |
| Size / Dimension [x] | 3.43 in |
| Size / Dimension [y] | 4.15 in |
| Size / Dimension [y] | 105.41 mm |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 299.81 | |
Description
General part information
20-101-0455 Series

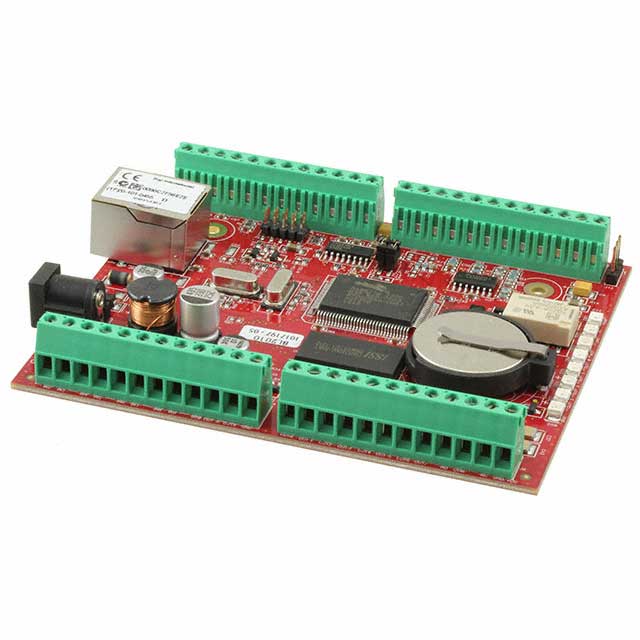

Single Board Computer 22.1MHz 1 Core 128KB/128KB RAM Rabbit 2000
