325-020-500-207
ActiveEDAC Inc.

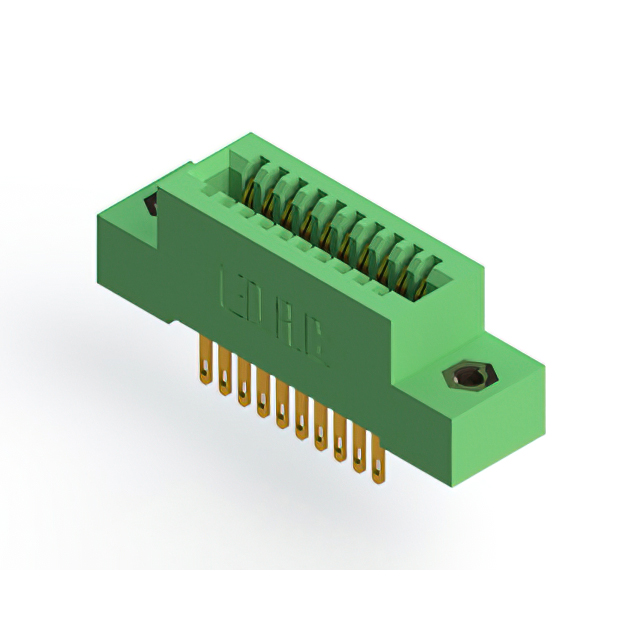

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, M3X0.5, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
325-020-500-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, M3X0.5, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-020-500-207 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
325-020 Series
| Part | Number of Positions | Pitch [x] | Pitch [x] | Gender | Number of Rows | Contact Material | Card Thickness | Card Thickness | Termination | Read Out | Number of Positions/Bay/Row [custom] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Finish | Termination Rows | Contact Type | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Wire Wrap | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||||||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Solder | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | |||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 1 | Copper Alloy | 3.18 mm | 0.125 in | Solder | Single | Through Hole | 125 °C | -65 ░C | Non Specified - Single Edge | Gold | 1 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 20 | 20 | 20 | |
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Wire Wrap | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | |||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Solder Eyelet(s) | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | |||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Solder Eyelet(s) | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Solder Eyelet(s) | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 1 | Copper Alloy | 3.18 mm | 0.125 in | Solder | Single | Through Hole | 125 °C | -65 ░C | Non Specified - Single Edge | Gold | 1 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 20 | 20 | 20 | ||||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Solder | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 20 | 2.54 mm | 0.1 in | Female | 2 | Copper Alloy | 3.18 mm | 0.125 in | Wire Wrap | Dual | 10 | Through Hole | 125 °C | -65 ░C | Non Specified - Dual Edge | Gold | 2 | Cantilever | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
