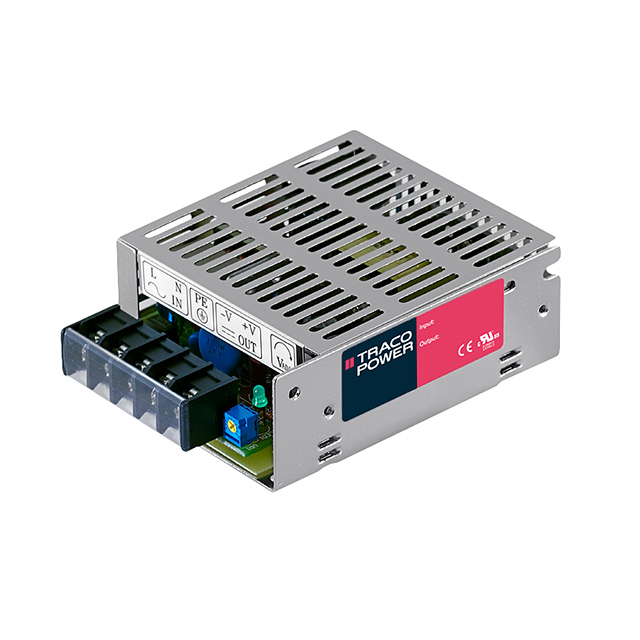

TXL 035-1515D

Active

Traco Power

AC/DC POWER SUPPLY DUAL-OUT -15V/15V 2.4A/1.5A 36W 6-PIN

Search across all available documentation for this part.

Active

Traco Power

AC/DC POWER SUPPLY DUAL-OUT -15V/15V 2.4A/1.5A 36W 6-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TXL 035-1515D

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	2.4 A
Current - Output 2	1.5 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	36 W
Size / Dimension [x]	99.1 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.23 "
Size / Dimension [y]	82 mm
Size / Dimension [z]	35.1 mm
Size / Dimension [z]	1.38 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

Part	Number of Outputs	Efficiency	Type	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power (Watts)	Voltage - Isolation	Approval Agency	Features	Voltage - Output 2	Current - Output 2
Traco Power TXL 035-24S	1	84 %	Enclosed	ITE (Commercial)	264 VAC 375 VDC	85 VAC 120 VDC	1.5 A	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	24 V	-20 °C	70 °C	Chassis Mount	36 W	3000 V	CE cURus	Adjustable Output Universal Input
Traco Power TXL 035-15S	1	84 %	Enclosed	ITE (Commercial)	264 VAC 375 VDC	85 VAC 120 VDC	2.4 A	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	15 V	-20 °C	70 °C	Chassis Mount	36 W	3000 V	CE cURus	Adjustable Output Universal Input
Traco Power TXL 035-1515D	2	84 %	Enclosed	ITE (Commercial)	264 VAC 375 VDC	85 VAC 120 VDC	2.4 A	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	15 V	-20 °C	70 °C	Chassis Mount	36 W	3000 V	CE cURus	Adjustable Output Universal Input	-15 V	1.5 A
Traco Power TXL 035-12S	1	84 %	Enclosed	ITE (Commercial)	264 VAC 375 VDC	85 VAC 120 VDC	3 A	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	12 V	-20 °C	70 °C	Chassis Mount	36 W	3000 V	CE cURus	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 15V -15V 85 ~ 264 VAC, 120 ~ 375 VDC Input
