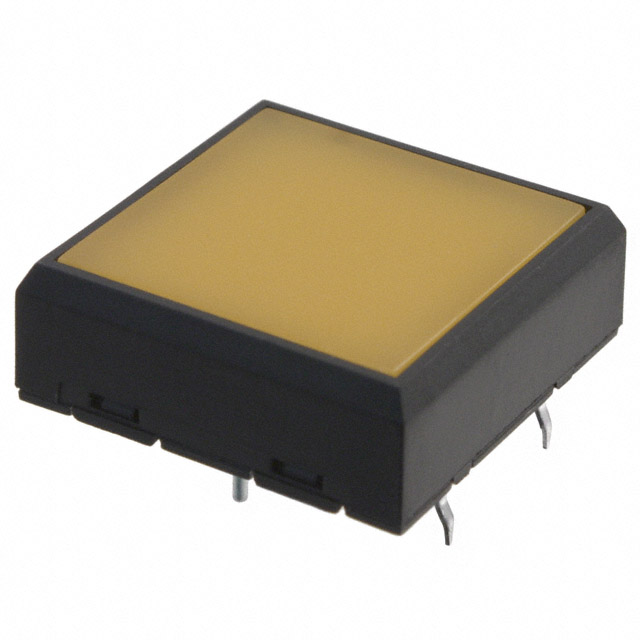

JL15SKSDDP2

Active

NKK Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	JL15SKSDDP2

Actuator Height off PCB, Vertical [z]	7.85 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Illuminated
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	4 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Switch Travel	0.75 mm
Termination Style	PC Pin

Part	Illumination Voltage (Nominal)	Illumination	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Operating Force	Switch Function	Actuator Type	Mechanical Life	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Orientation	Mounting Type	Circuit	Termination Style	Switch Travel
NKK Switches JL15SKSDDP2	4 VDC	Illuminated	7.85 mm	0.05 A 24 VDC	300 gf	Off-Mom	Square Button	1000000 Cycles	Amber LED	50 °C	-25 °C	Polycarbonate (PC)	Top Actuated	Through Hole	SPST-NO	PC Pin	0.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
