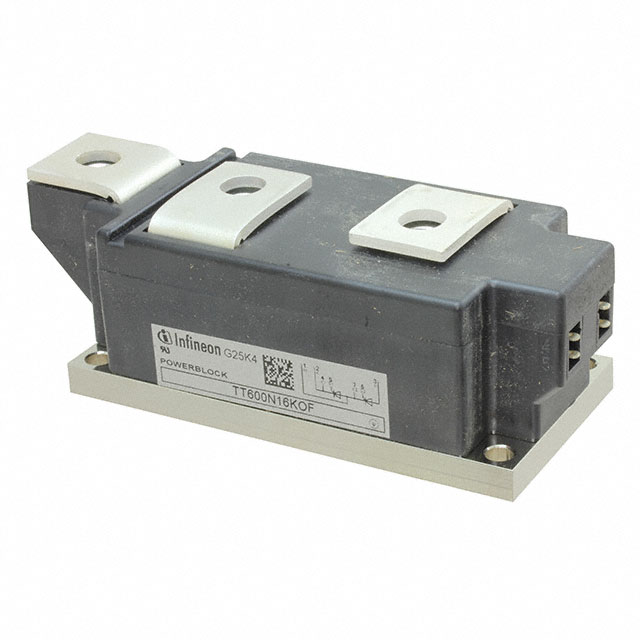

TT600N16KOFHPSA2

Active

Infineon Technologies

THYRISTOR DIODE MODULE, 1.6KV, 600A

Search across all available documentation for this part.

Active

Infineon Technologies

THYRISTOR DIODE MODULE, 1.6KV, 600A

Technical Specifications

Parameters and characteristics for this part

Specification	TT600N16KOFHPSA2

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - On State (It (AV)) (Max) [Max]	600 A
Current - On State (It (RMS)) (Max)	1050 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature	125 ¯C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.6 kV

Part	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max)	Structure	Package / Case	Mounting Type	Current - Hold (Ih) (Max) [Max]	Operating Temperature	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (AV)) (Max) [Max]
Infineon Technologies TT600N16KOFXPSA1	250 mA	1050 A	Series Connection - All SCRs	Module	Chassis Mount	300 mA	125 ¯C	2 V	1.6 kV	2 SCRs	21000 A	600 A
Infineon Technologies TT600N16KOFHPSA2	250 mA	1050 A	Series Connection - All SCRs	Module	Chassis Mount	300 mA	125 ¯C	2 V	1.6 kV	2 SCRs		600 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.6 kV 1050 A Series Connection - All SCRs Chassis Mount Module
