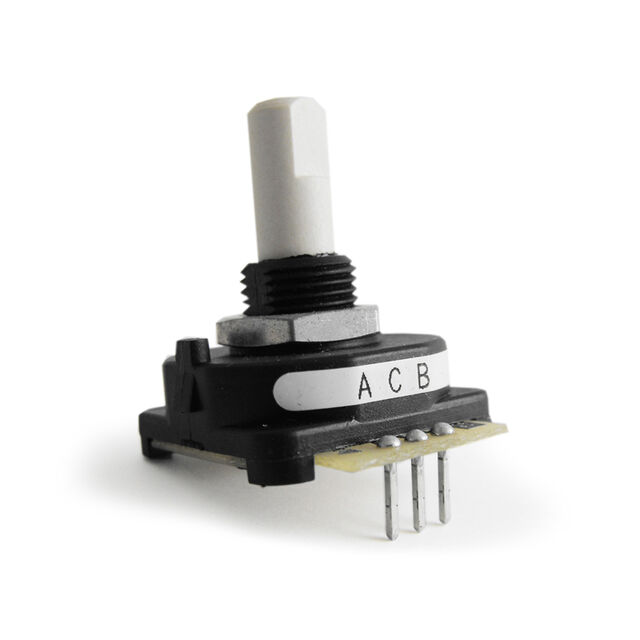

25LB18-Q
ActiveGrayhill Inc.
ROTARY ENCODER MECHANICAL 20PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
25LB18-Q
ActiveGrayhill Inc.
ROTARY ENCODER MECHANICAL 20PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25LB18-Q |
|---|---|
| Actuator Type | 0.25 |
| Actuator Type | Flatted End |
| Built in Switch | False |
| Detent | True |
| Encoder Type | Mechanical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 20 |
| Rotational Life (Cycles Min) [Min] | 100K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.47 | |
| 5 | $ 23.58 | |||
| 10 | $ 22.08 | |||
| 25 | $ 20.23 | |||
| 50 | $ 18.93 | |||
| 100 | $ 17.71 | |||
| 250 | $ 16.20 | |||
| 500 | $ 15.75 | |||
Description
General part information
25LB18 Series
Rotary Encoder Mechanical 20 Quadrature (Incremental) Vertical
