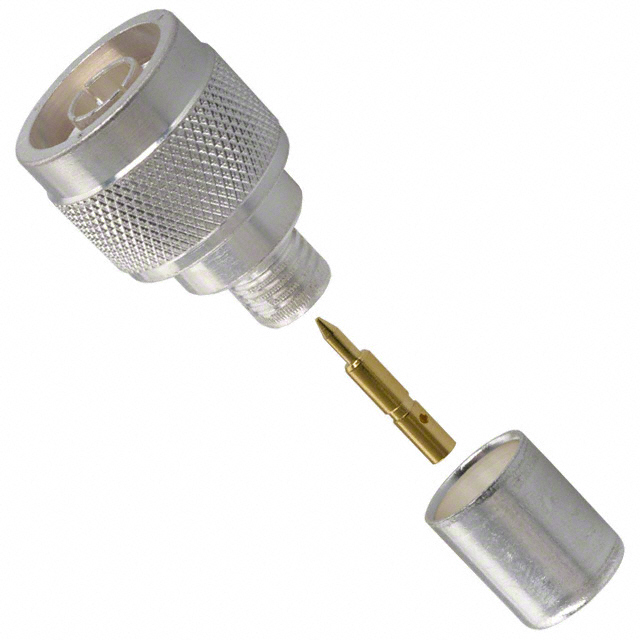

082-332

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	082-332

Body Finish	Silver
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Shield Termination	Body Finish	Connector Type	Includes	Mounting Type	Frequency - Max [Max]	Body Material	Housing Color	Insertion Loss	Dielectric Material	Cable Group	Center Contact Material	Impedance	Number of Ports	Connector Style	Mating Cycles
Amphenol RF 082-332	1500 V	Crimp Solder	-65 ░C	165 °C	Gold	Crimp	Silver	Male Pin Plug	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	11 GHz	Brass	Silver	0.15 dB	Polytetrafluoroethylene (PTFE)	213 214 225 302 393 87 8A 9 9A 9B RG-8	Brass	50 Ohms	1	N Type	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.91

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
