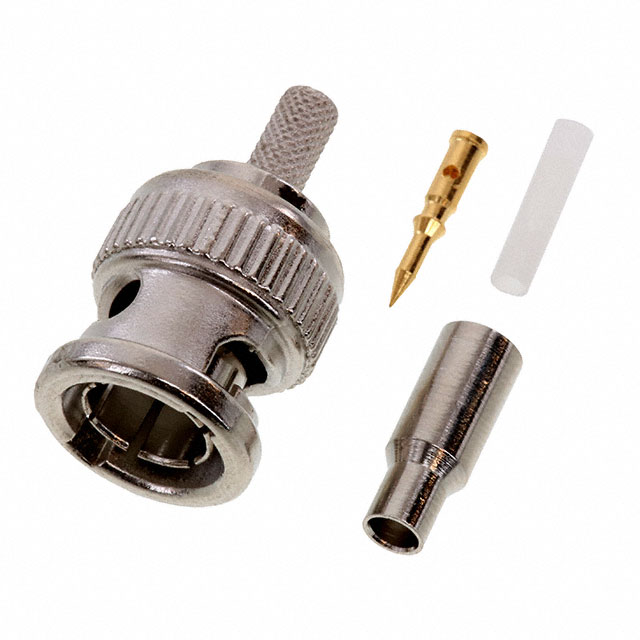

RF1-03-T-03-75

Obsolete

Adam Tech

CRIMP BNC STRAIGHT PLUG-RG179 CA

Search across all available documentation for this part.

Obsolete

Adam Tech

CRIMP BNC STRAIGHT PLUG-RG179 CA

Technical Specifications

Parameters and characteristics for this part

Specification	RF1-03-T-03-75

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Plating	Connector Style	Number of Ports	Frequency - Max [Max]	Center Contact Material	Mounting Type	Shield Termination	Cable Group	Contact Termination	Voltage Rating	Connector Type	Body Material	Dielectric Material	Fastening Type	Impedance	Body Finish
Adam Tech RF1-03-T-03-75	Gold	BNC	1	4 GHz	Brass	Free Hanging (In-Line)	Crimp	RG-179	Crimp	500 V	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Bayonet Lock	75 Ohms	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
