MGJ6D242005DC

Active

Murata Power Solutions Inc.

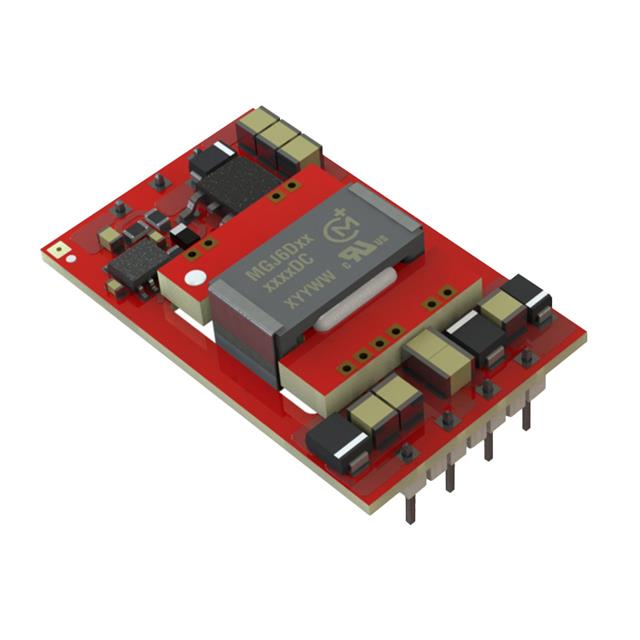

DC-DC CONVERTER, 2 O/P, 4.8W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MGJ6D242005DC

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 2 O/P, 4.8W

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MGJ6D242005DC

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	240 mA
Current - Output (Max) [Max]	240 mA
Features	SCP, UVLO
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module
Power (Watts)	6 W
Size / Dimension [x]	45.5 mm
Size / Dimension [x]	1.79 "
Size / Dimension [y]	1.09 in
Size / Dimension [y]	27.8 mm
Size / Dimension [z]	9.8 mm
Size / Dimension [z]	0.39 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	5.2 kV
Voltage - Output 1	20 V
Voltage - Output 2	-5 V

MGJ6D24 Series

Part	Mounting Type	Number of Outputs	Package / Case	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Output 2	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. MGJ6D241505WMC-R13	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C	300 mA	15 V	Isolated Module	36 V	10.2 kV
Murata Power Solutions Inc. MGJ6D241505LMC-R7	Surface Mount	2	7-SMD Module	SCP UVLO	ITE (Commercial) Medical	18 V	-5 V	81 %	9.4 mm	27.8 mm	1.09 in	1.57 in	0.37 in	40 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D242005WMC-R7	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C		20 V	Isolated Module	36 V	10.2 kV	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D241505LMC-R13	Surface Mount	2	7-SMD Module	SCP UVLO	ITE (Commercial) Medical	18 V	-5 V	81 %	9.4 mm	27.8 mm	1.09 in	1.57 in	0.37 in	40 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D241505DC	Through Hole	2	7-DIP Module	SCP UVLO	ITE (Commercial) Medical	18 V	-5 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D242005DC	Through Hole	2	7-DIP Module	SCP UVLO	ITE (Commercial) Medical	18 V	-5 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C		20 V	Isolated Module	36 V	5.2 kV	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D241505SC	Through Hole	2	8-SIP Module	SCP UVLO	ITE (Commercial) Medical	18 V	-5 V		28.1 mm	11 mm	0.43 in	1.54 in	1.11 in	39 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D241510DC	Through Hole	2	7-DIP Module	SCP UVLO	ITE (Commercial) Medical	18 V	-10 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C		15 V	Isolated Module	36 V	5.2 kV	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D24H24MC-R13	Surface Mount	2	7-SMD Module	SCP UVLO	ITE (Commercial) Medical	18 V	24 V	85 %	14.1 mm	22.6 mm	0.89 in	1.16 in	0.56 "	29.5 mm	6 W	-40 °C	105 ░C		24 V	Isolated Module	36 V	5.2 kV			125 mA	125 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.92
		5	$ 16.84
		10	$ 16.72
		25	$ 16.53
		50	$ 16.12
		100	$ 15.31
		250	$ 14.33
		500	$ 13.37
Newark	Each	1	$ 17.60
		5	$ 17.51
		10	$ 17.39
		25	$ 17.19
		50	$ 16.76
		100	$ 15.92

Description

General part information

MGJ6D24 Series

Isolated Module DC DC Converter 2 Output 20V -5V 240mA, 240mA 18V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN
