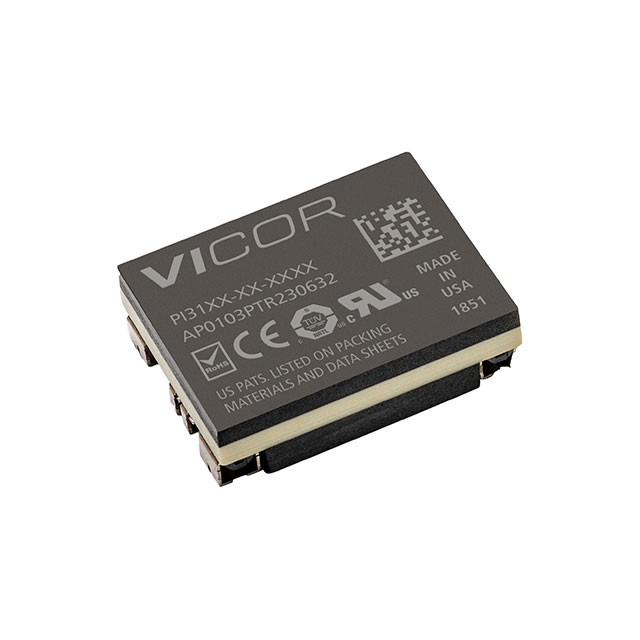

PI3526-00-BGIZ
ObsoleteVicor Corporation
IC REG BUCK 12V 18A 110BGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI3526-00-BGIZ
ObsoleteVicor Corporation
IC REG BUCK 12V 18A 110BGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3526-00-BGIZ |
|---|---|
| Current - Output | 18 A |
| Frequency - Switching | 7 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 110-BBGA Module |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 30 V |
| Voltage - Output (Min/Fixed) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI3526 Series
Buck Switching Regulator IC Positive Fixed 12V 1 Output 18A 110-BBGA Module
Documents
Technical documentation and resources
