FGG.1B.512.CTAD42

Active

LEMO

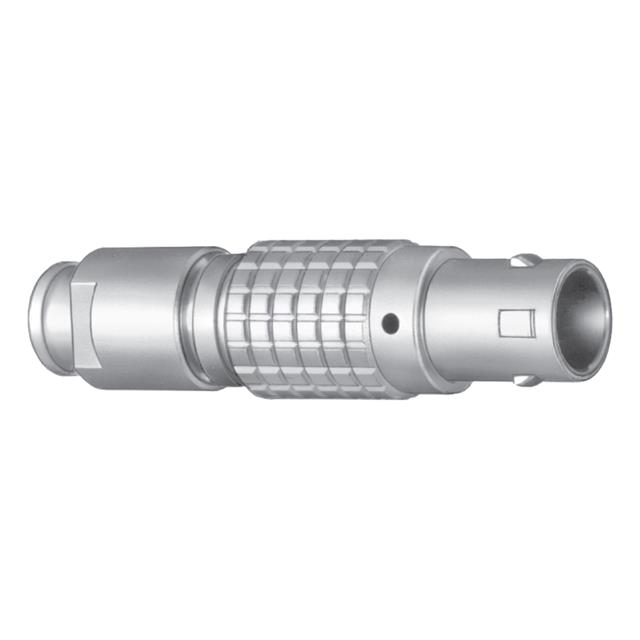

CABLE MOUNT PLUG 2-PAIR

Search across all available documentation for this part.

Active

LEMO

CABLE MOUNT PLUG 2-PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	FGG.1B.512.CTAD42

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	3.1 mm, 4.2 mm
Cable Opening [diameter]	0.165 in, 0.122 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	512
Shielding	Shielded

Part	Shell Finish	Shielding	Contact Finish - Mating	Connector Type	Color	Backshell Material, Plating	Ingress Protection	Fastening Type	Shell Size - Insert	Shell Material	Insert Material	Primary Material	Mounting Type	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]
LEMO FGG.1B.512.CTAD42	Chrome	Shielded	Gold	Male Pins Plug	Silver	Brass Chrome	IP50	Push-Pull	512	Brass	Polytetrafluoroethylene (PTFE)	Metal	Free Hanging (In-Line)	G	Backshell	-55 °C	250 °C	12	3.1 mm 4.2 mm	0.122 in 0.165 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Male Pins Solder Cup
