A80606KEVJSR-1
ActiveAllegro MicroSystems

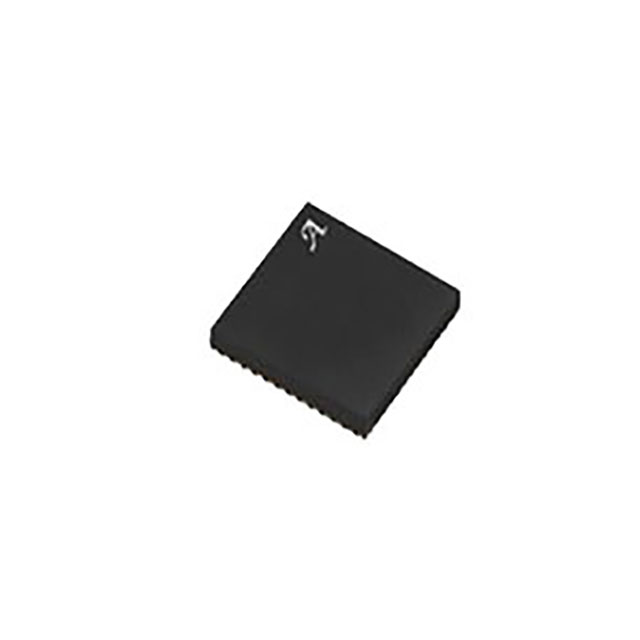

IC LED DRV RGLTR PWM 180MA 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A80606KEVJSR-1
ActiveAllegro MicroSystems
IC LED DRV RGLTR PWM 180MA 48QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A80606KEVJSR-1 |
|---|---|
| Applications | Backlight |
| Current - Output / Channel [custom] | 180 mA |
| Dimming | Analog, PWM |
| Frequency [Max] | 2.3 MHz |
| Frequency [Min] | 260 kHz |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Topology | SEPIC, Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output [Max] | 40 V |
| Voltage - Output [Min] | 1.06 V |
| Voltage - Supply (Max) [Max] | 40 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.03 | |
| 5 | $ 3.40 | |||
| 10 | $ 3.15 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.66 | |||
| 100 | $ 2.47 | |||
| 500 | $ 2.09 | |||
| 1000 | $ 1.94 | |||
| Digi-Reel® | 1 | $ 4.03 | ||
| 5 | $ 3.40 | |||
| 10 | $ 3.15 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.66 | |||
| 100 | $ 2.47 | |||
| 500 | $ 2.09 | |||
| 1000 | $ 1.94 | |||
| Tape & Reel (TR) | 4000 | $ 1.67 | ||
Description
General part information
A80606 Series
LED Driver IC 6 Output DC DC Regulator SEPIC, Step-Up (Boost) Analog, PWM Dimming 180mA 48-QFN-EP (7x7)
