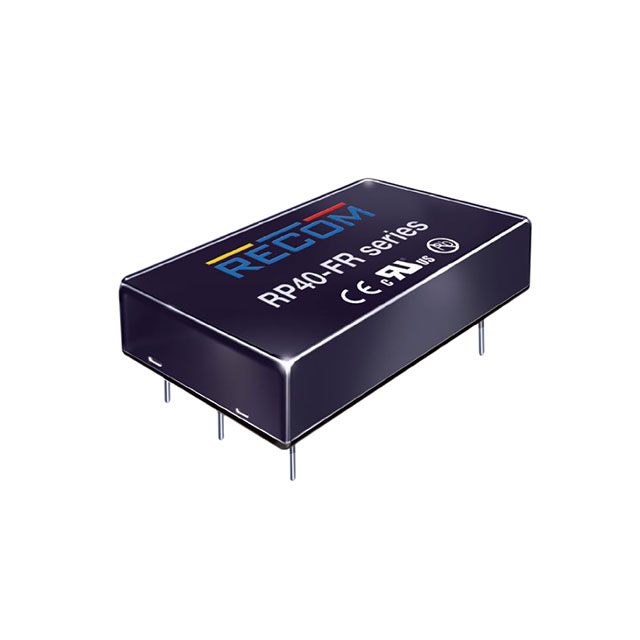

RP40-4805SFR/N

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W 18-75VIN 05VOUT 8A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP40-4805SFR/N

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W 18-75VIN 05VOUT 8A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP40-4805SFR/N

Applications	Railway, ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	8 A
Efficiency	91 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Supplier Device Package	6-DIP Module
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V

RP40-1103.3 Series

Isolated DC/DC Converters - Through Hole 40W 18-75Vin +/-15Vout +/-1.333A

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1	Control Features	Voltage - Output 2	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Efficiency	Current - Output (Max)	Current - Output (Max)	Features	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Supplier Device Package	Current - Output (Max) [Max]
RECOM Power RP40-2412DGW/N	Through Hole	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	ITE (Commercial)	36 V	12 V	Active Low Enable	-12 V	9 V	2	1.6 kV	86 %	1.67 A	1.67 A	OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	55 °C	Isolated Module	8-DIP Module
RECOM Power RP40-2424DFR/N	Through Hole	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	ITE (Commercial) Railway	36 V	24 V	Active Low Enable	-24 V	9 V	2	1.6 kV	91 %	833 mA	833 mA	OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module
RECOM Power RP40-4805SGW/N	Through Hole	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	ITE (Commercial)	75 V	5 V	Active Low Enable		18 V	1	1.6 kV	88 %			OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	55 °C	Isolated Module	8-DIP Module		8 A
RECOM Power RP40-4812SFR/N	Through Hole	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	ITE (Commercial) Railway	75 V	12 V	Active Low Enable		18 V	1	1.6 kV	92 %			OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module	3.333 A
RECOM Power RP40-4824SFR/N	Through Hole	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	ITE (Commercial) Railway	75 V	24 V	Active Low Enable		18 V	1	1.6 kV	91 %			OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module	1.666 A
RECOM Power RP40-2415SFR/N	Through Hole	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	ITE (Commercial) Railway	36 V	15 V	Active Low Enable		9 V	1	1.6 kV	92 %			OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module	2.666 A
RECOM Power RP40-4805SFR/N	Through Hole	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	ITE (Commercial) Railway	75 V	5 V	Active Low Enable		18 V	1	1.6 kV	91 %			OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module	8 A
RECOM Power RP40-4805SG-HC	Through Hole	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	ITE (Commercial)	75 V	5 V	Active High Enable		36 V	1	1.6 kV	90 %			OCP OVP Remote On/Off SCP UVLO	40 W	-40 °C	85 °C	Isolated Module	9-DIP Module		8 A
RECOM Power RP40-11024SFR/N	Through Hole	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	ITE (Commercial) Railway	160 V	24 V	Active Low Enable		43 V	1	3000 V	90 %			OCP OTP OVP Remote On/Off SCP UVLO	40 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module	1.666 A
RECOM Power RP40-243.3SFR/P-HC	Through Hole	16.8 mm	25.4 mm	25.4 mm	0.66 in	56.8 mm	2.24 "	ITE (Commercial) Railway	36 V	3.3 V	Active High Enable		9 V	1	1.6 kV	90 %			OCP OTP OVP Remote On/Off SCP UVLO	33 W	-40 °C	105 C	Isolated Module	6-DIP Module	6-DIP Module	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 119.80
Sager	N/A	1	$ 126.52
		5	$ 118.61
		10	$ 111.63
		25	$ 103.99
		50	$ 99.88
		100	$ 97.32
		250	$ 92.58

Description

General part information

RP40-1103.3 Series

Isolated DC/DC Converters - Through Hole 40W 18-75Vin +/-15Vout +/-1.333A

Documents

Technical documentation and resources

Datasheet

Document
