0010311048
ObsoleteMolex

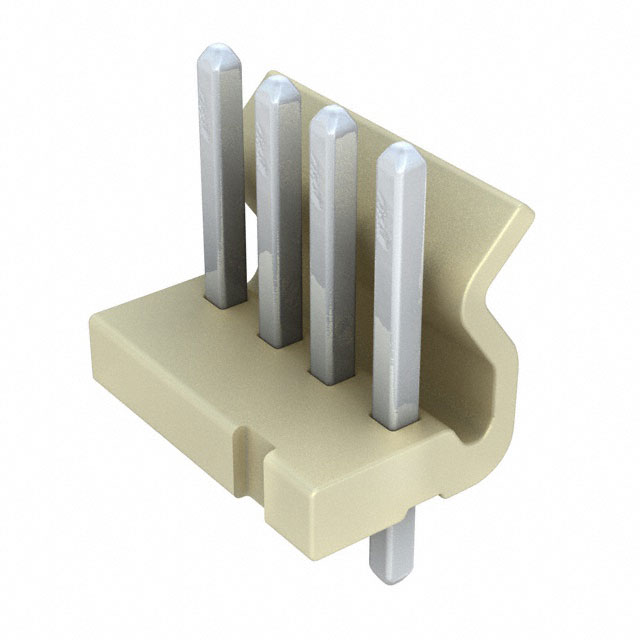

CONN HEADER VERT 4POS
Deep-Dive with AI
Search across all available documentation for this part.
0010311048
ObsoleteMolex
CONN HEADER VERT 4POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0010311048 |
|---|---|
| Applications | Industrial, Automotive, Medical, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Mating | 10.65 mm |
| Contact Length - Mating | 0.419 in |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Color | Natural |
| Insulation Height | 12.9 mm |
| Insulation Height | 0.508 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 17.45 mm |
| Overall Contact Length | 0.687 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
001031 Series
Connector Header Through Hole 4 position
