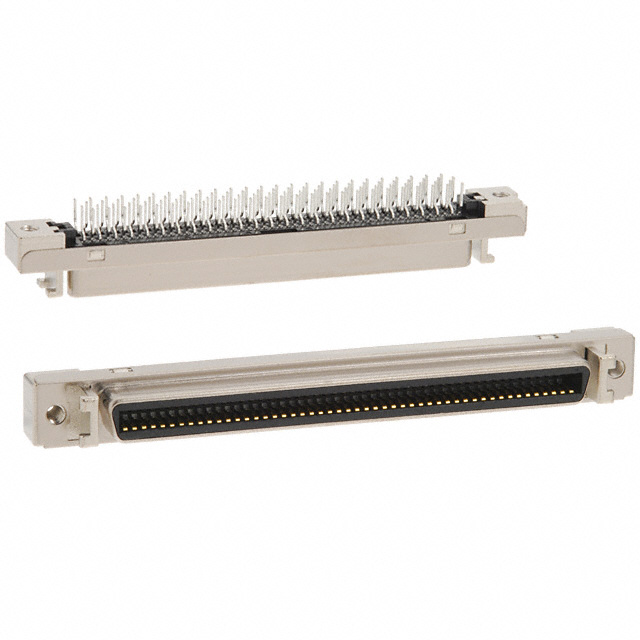

102A0-6212VC

Obsolete

3M (TC)

CONN RCPT 100POS PCB SOLDER

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 100POS PCB SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Termination	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Mounting Type	Number of Positions	Features	Number of Rows	Connector Type
3M (TC) 102A0-M218PE
3M (TC) 102A0-6212VC	Receptacle	Solder	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Gold	Outer Shroud Contacts	Panel Mount Through Hole	100	Shielded	2
3M (TC) 102A0-6212PC	Receptacle	Solder	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Gold	Outer Shroud Contacts	Panel Mount Through Hole	100	Shielded	2
3M (TC) 102A0-6212PL	Receptacle	Solder	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Gold	Outer Shroud Contacts	Panel Mount Through Hole	100	Shielded	2
3M (TC) 102A0-M218VE	Stacked	Solder	Housing/Shell	2.6 M	0.51 µm	20 µin	Gold	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	100	Shielded	2	2 Plugs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Position Receptacle Connector Panel Mount, Through Hole Solder
