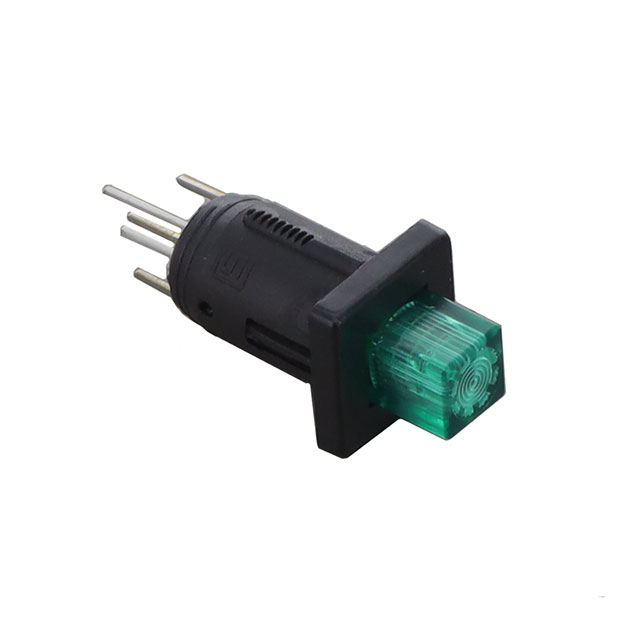

0041.9157.5327

Active

SCHURTER Inc.

SWITCH PUSH DPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH DPST-NO 200MA 60V

Technical Specifications

Parameters and characteristics for this part

Specification	0041.9157.5327

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	200 mA
Electrical Life	10000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP40
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	60 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Current Rating (Amps)	Mechanical Life	Type	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Termination Style	Actuator Type	Ingress Protection	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
SCHURTER Inc. 0041.9157.1137	50 VDC	Off-On	8 mm	DPST-NO	10000 Cycles	200 mA	10000 Steps	Illuminated Standard	60 V	Panel Mount Front	-25 °C	60 °C	No Marking	PC Pin	Button Round	IP40
SCHURTER Inc. 0041.9157.5327	50 VDC	Off-On	8 mm	DPST-NO	10000 Cycles	200 mA	10000 Steps	Illuminated Standard	60 V	Panel Mount Front	-25 °C	60 °C	No Marking	PC Pin	Button Square	IP40	Green	Green LED	2 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard, Illuminated Panel Mount, Front
