2901561

Obsolete

Phoenix Contact

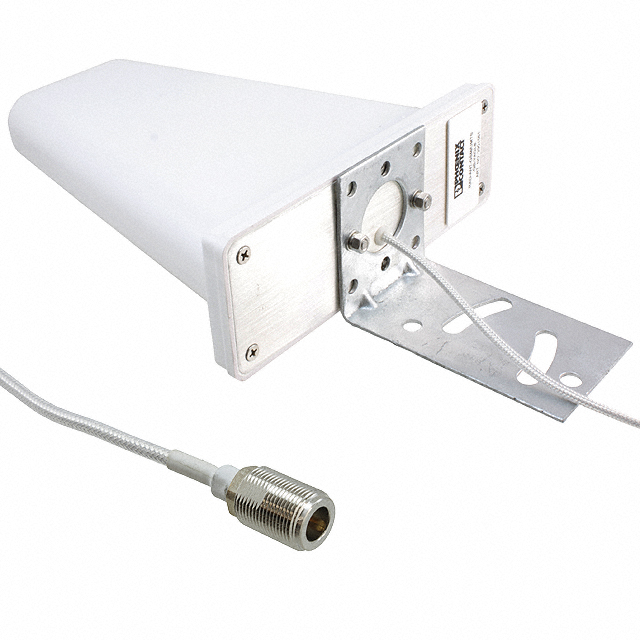

ANTENNAS RAD-ANT-GSM/UMTS- QB-YAGI-8

Search across all available documentation for this part.

Obsolete

Phoenix Contact

ANTENNAS RAD-ANT-GSM/UMTS- QB-YAGI-8

Technical Specifications

Parameters and characteristics for this part

Antennas RAD-ANT-GSM/UMTS- QB-YAGI-8

Part	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	2nd Contact Gender	1st Contact Gender	Cable Impedance	2nd Connector Mounting Type	Style	Features	1st Connector Mounting Type	Length	Length	Length	Cable Type	Color	Overall Impedance	Mounting Type	Frequency Group	Frequency (Center/Band)	Gain	Termination	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [Max]	Height (Max) [Max]	Number of Bands
Phoenix Contact 2867380	N-Type Plug	85 °C	-40 °C	Male	Male	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	Shielded	Free Hanging (In-Line)	59 '	59 '	18 m	LMR 400	Black	50 Ohms
Phoenix Contact 2901561																	Bracket Mount	Wide Band	1.8 GHz 1.9 GHz 2.1 GHz 800 MHz 850 MHz 900 MHz	8 dBi	N Type Female	Yagi	2.5 GHz	800 MHz	2.598 in	66 mm	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Antennas RAD-ANT-GSM/UMTS- QB-YAGI-8

Technical documentation and resources
