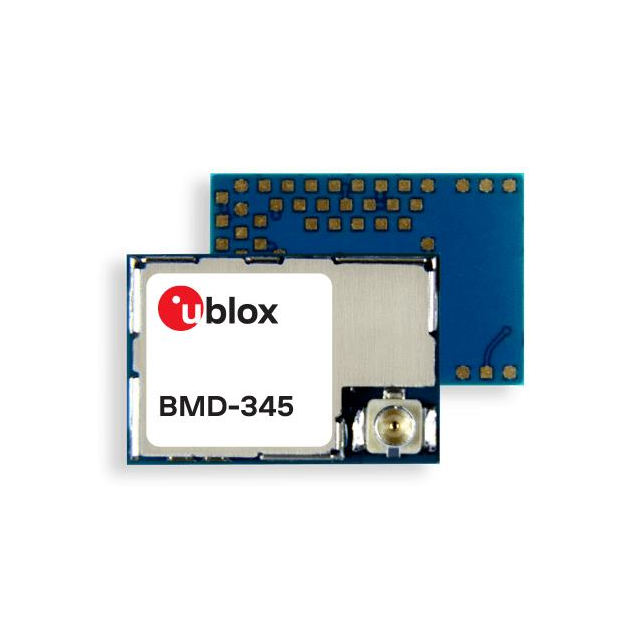

BMD-345-EVAL

Active

u-blox

EVAL BOARD FOR BMD-345 NRF52840

Search across all available documentation for this part.

Active

u-blox

EVAL BOARD FOR BMD-345 NRF52840

Technical Specifications

Parameters and characteristics for this part

Specification	BMD-345-EVAL

For Use With/Related Products	nRF52840, BMD-345
Frequency	2.4 GHz
Supplied Contents	Cable(s), Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)

Part	Protocol	Frequency	Power - Output	Mounting Type	Serial Interfaces	Current - Transmitting	Data Rate	Utilized IC / Part	RF Family/Standard	Antenna Type	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensitivity	Supplied Contents	For Use With/Related Products	Type
u-blox BMD-345-A-R	Bluetooth v5.0 Thread Zigbee®	2.4 GHz	18 dBm	Surface Mount	ADC GPIO I2C I2S PDM PWM SPI UART USB	4.8 mA	1 Mbps	nRF52840	802.15.4 Bluetooth	Antenna Not Included U.FL	1 MB 256 kB	3.6 V	2 V	85 °C	-40 °C	Module	-102 dBm
u-blox BMD-345-EVAL		2.4 GHz																Board(s) Cable(s)	BMD-345 nRF52840	802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.00

General part information

BMD-34 BMD-345, nRF52840 Transceiver; 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
