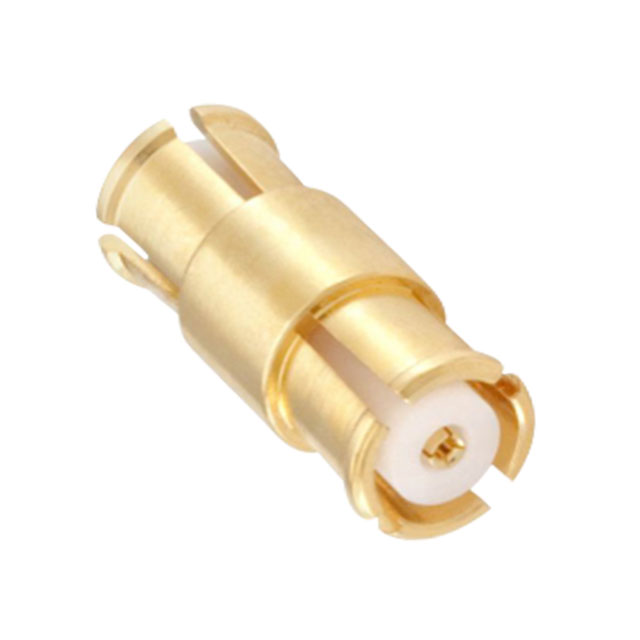

19K108-K00L5

Active

Rosenberger

HEADER 26.5GHZ -65℃~+155℃ 50Ω COAXIAL CONNECTORS (RF) ROHS

Search across all available documentation for this part.

Active

Rosenberger

HEADER 26.5GHZ -65℃~+155℃ 50Ω COAXIAL CONNECTORS (RF) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	19K108-K00L5

Adapter Series	SMP to SMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Adapter Type	Adapter Series	Conversion Type	Body Finish	Mounting Type	Center Contact Plating	Center Contact Material	Impedance	Body Material	Dielectric Material	Style	Frequency - Max [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 19K108-K00L5	Female to Female	Jack to Jack	SMP to SMP	Same Series	Gold	Free Hanging (In-Line)	Gold	Beryllium Copper	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Straight	26.5 GHz	Female Socket SMP Jack	SMP Jack Female Socket	Snap-On	155 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
