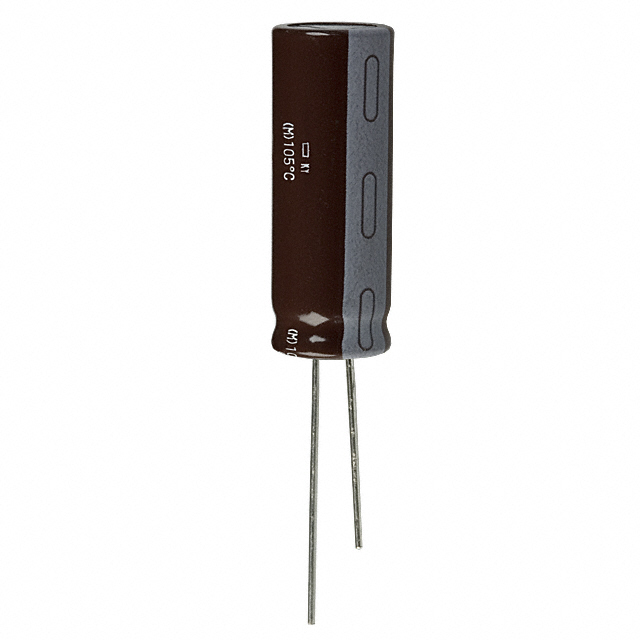

EKY-6R3ELL562MK35S

Active

Chemi-Con

CAP ALUM 5600UF 20% 6.3V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-6R3ELL562MK35S

Active

Chemi-Con

CAP ALUM 5600UF 20% 6.3V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-6R3ELL562MK35S

Applications	General Purpose
Capacitance	5.6 mF
Height - Seated (Max) [Max] [z]	36.5 mm
Height - Seated (Max) [Max] [z]	1.437 in
Impedance	20 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.88 A
Ripple Current @ Low Frequency	2.448 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	6.3 V

EKY-6R3E Series

Part	Lifetime @ Temp.	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Tolerance	Voltage - Rated	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Mounting Type	Package / Case	Impedance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Chemi-Con EKY-6R3ELL562MK35S	8000 Hrs	2.448 A	-40 °C	105 ░C	2.88 A	20 %	6.3 V	5 mm	0.197 in	General Purpose	36.5 mm	1.437 in	5.6 mF	Through Hole	Radial Can	20 mOhms	Polar	0.492 in	12.5 mm
Chemi-Con EKY-6R3ELL332MK20S	8000 Hrs	1.425 A	-40 °C	105 ░C		20 %	6.3 V	5 mm	0.197 in	General Purpose			3.3 mF	Through Hole	Radial Can	35 mOhms	Polar	0.492 in	12.5 mm	21.5 mm	0.846 in
Chemi-Con EKY-6R3ELL222MJ25S	6000 Hrs	1.2375 A	-40 °C	105 ░C	1.65 A	20 %	6.3 V	5 mm	0.197 in	General Purpose	26.5 mm	1.043 in	2200 µF	Through Hole	Radial Can	42 mOhms	Polar	0.394 in	10 mm
Chemi-Con EKY-6R3ELL681MHB5D	6000 Hrs	384 mA	-40 °C	105 ░C	640 mA	20 %	6.3 V	3.5 mm	0.138 in	General Purpose	13 mm	0.512 "	680 µF	Through Hole	Radial Can	130 mOhms	Polar	0.315 "	8 mm
Chemi-Con EKY-6R3ETD331MF11D	4000 Hrs	170 mA	-40 °C	105 ░C	340 mA	20 %	6.3 V	2.5 mm	0.098 in	General Purpose			330 µF	Through Hole	Radial Can	220 mOhms	Polar	0.248 in	6.3 mm	12.5 mm	0.492 in
Chemi-Con EKY-6R3ELL392MM15S	8000 Hrs	1.6575 A	-40 °C	105 ░C	2.21 A	20 %	6.3 V	7.5 mm	0.295 in	General Purpose	16.5 mm	16.51 mm	3900 µF	Through Hole	Radial Can	43 mOhms	Polar	0.709 "	18 mm
Chemi-Con EKY-6R3ELL182MK15S	8000 Hrs	870 mA	-40 °C	105 ░C	1.45 A	20 %	6.3 V	5 mm	0.197 in	General Purpose	16.5 mm	16.51 mm	1800 µF	Through Hole	Radial Can	49 mOhms	Polar	0.492 in	12.5 mm
Chemi-Con EKY-6R3ELL821MJC5S	6000 Hrs	519 mA	-40 °C	105 ░C	865 mA	20 %	6.3 V	5 mm	0.197 in	General Purpose			820 µF	Through Hole	Radial Can	80 mOhms	Polar	0.394 in	10 mm		0.551 "	14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.42
		10	$ 1.06
		50	$ 0.97
		100	$ 0.80
		500	$ 0.64
		1000	$ 0.56
		2500	$ 0.52
		5000	$ 0.50

Description

General part information

EKY-6R3E Series

5600 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
