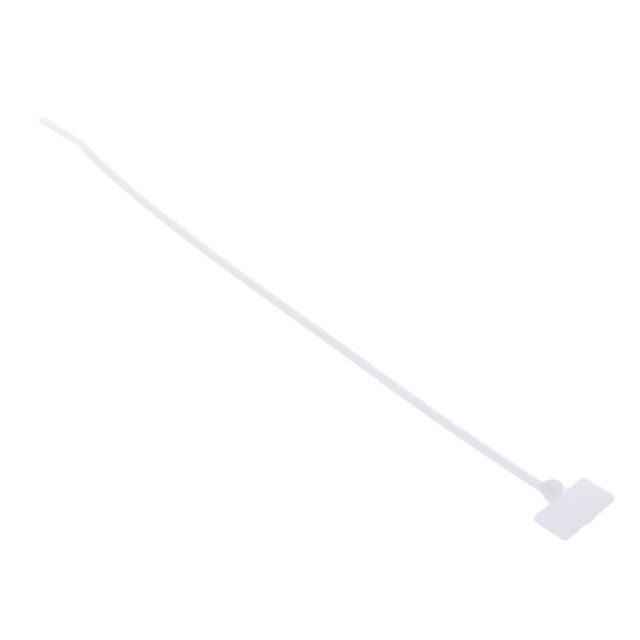

DOME-TOP BARB TY FLAG MARKER TIE, 8.3", MINIATURE, NYLON 6.6, NATURAL, WRITE-ON AREA: .39" X .81" ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BF2M-C
ActivePanduit Corp
DOME-TOP BARB TY FLAG MARKER TIE, 8.3", MINIATURE, NYLON 6.6, NATURAL, WRITE-ON AREA: .39" X .81" ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BF2M-C |
|---|---|
| Bundle Diameter [diameter] | 50.8 mm |
| Bundle Diameter [diameter] | 2 in |
| Color | Natural |
| Length - Actual | 8.3 " |
| Length - Actual | 0.692 ' |
| Length - Actual | 210.8 mm |
| Length - Approximate | 8.25 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 18 lbs |
| Tensile Strength | 8.16 kg |
| Width [x] | 0.095 in |
| Width [x] | 2.41 mm |
| Wire/Cable Tie Type | Marker Strap/Flag Tie |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BF2M Series
Marker Strap/Flag Tie Natural 2.00" (50.80mm) 0.095" (2.41mm) 18 lbs (8.16 kg)
