EASV3020BA2

Active

Everlight Electronics Co Ltd

LED BLUE CLEAR 2SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EASV3020BA2

Active

Everlight Electronics Co Ltd

LED BLUE CLEAR 2SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EASV3020BA2

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	79 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2 mm
Supplier Device Package	2-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	471 nm
Wavelength - Peak	468 nm

EASV3020 Series

Part	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Lens Color	Lens Size [x]	Lens Size [y]	Supplier Device Package	Wavelength - Dominant	Configuration	Color	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Test	Wavelength - Peak	Height (Max) [Max] [z]	Package / Case	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ)	Current - Test [custom]	Current - Test [custom]	Millicandela Rating	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Everlight Electronics Co Ltd EASV3020GRA0	50 mcd	50 mcd	Rectangle with Domed Top	Colorless	2 mm	1 mm	3-SMD	573 nm 639 nm	Common Anode	Green Red	Clear	Surface Mount Right Angle	2 V	2 V	2 mm	3 mm	120 °	20 mA 20 mA	575 nm 650 nm	1.1 mm	3-SMD No Lead Exposed Pad
Everlight Electronics Co Ltd EASV3020BRA0			Rectangle with Domed Top	Colorless	2 mm	1 mm	4-SMD		Common Anode	Blue Red	Clear	Surface Mount Right Angle			2 mm	3 mm	120 °		468 nm 632 nm	1.1 mm	4-SMD No Lead	470 nm 624 nm	2 V 3 V	20 mA	20 mA	28 mcd 30 mcd
Everlight Electronics Co Ltd EASV3020GA0			Rectangle with Domed Top	Colorless	2 mm	1 mm	2-SMD	528 nm	Standard	Green	Clear	Surface Mount Right Angle			2 mm	3 mm	120 °	20 mA	518 nm	1.1 mm	2-SMD No Lead		3.5 V
Everlight Electronics Co Ltd EASV3020BA2			Rectangle with Domed Top	Colorless	2 mm	1 mm	2-SMD	471 nm	Standard	Blue	Clear	Surface Mount Right Angle			2 mm	3 mm	120 °	20 mA	468 nm	1 mm	2-SMD No Lead		3.3 V			79 mcd
Everlight Electronics Co Ltd EASV3020RGA0			Rectangle with Domed Top	Colorless	2 mm	1 mm	4-SMD	525 nm 624 nm	Common Anode	Green Red	Clear	Surface Mount Right Angle			2 mm	3 mm	120 °	20 mA 20 mA		1.1 mm	4-SMD No Lead		2 V 3.3 V			126 mcd 199 mcd	518 nm	632 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.38
		10	$ 0.25
		100	$ 0.17
		500	$ 0.12
		1000	$ 0.10
	Digi-Reel®	1	$ 0.38
		10	$ 0.25
		100	$ 0.17
		500	$ 0.12
		1000	$ 0.10
	Tape & Reel (TR)	2000	$ 0.09
		4000	$ 0.08
		6000	$ 0.08
		10000	$ 0.08
		14000	$ 0.07
		20000	$ 0.07
		50000	$ 0.07
		100000	$ 0.06

Description

General part information

EASV3020 Series

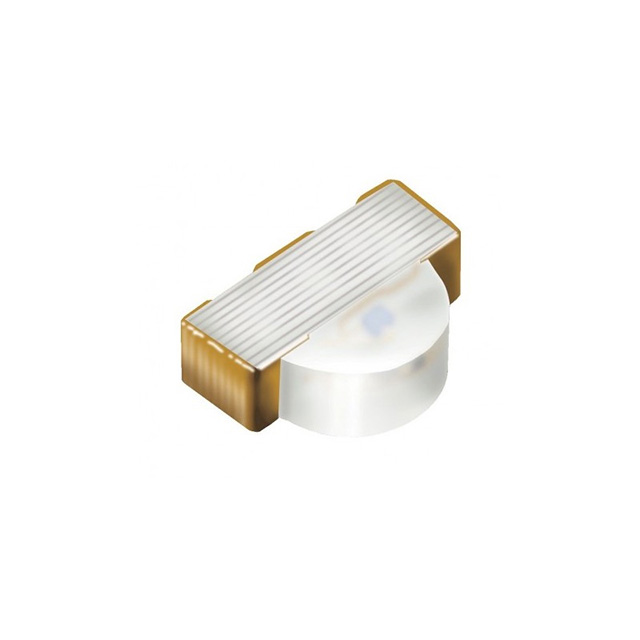

Blue 471nm LED Indication - Discrete 3.3V 2-SMD, No Lead
