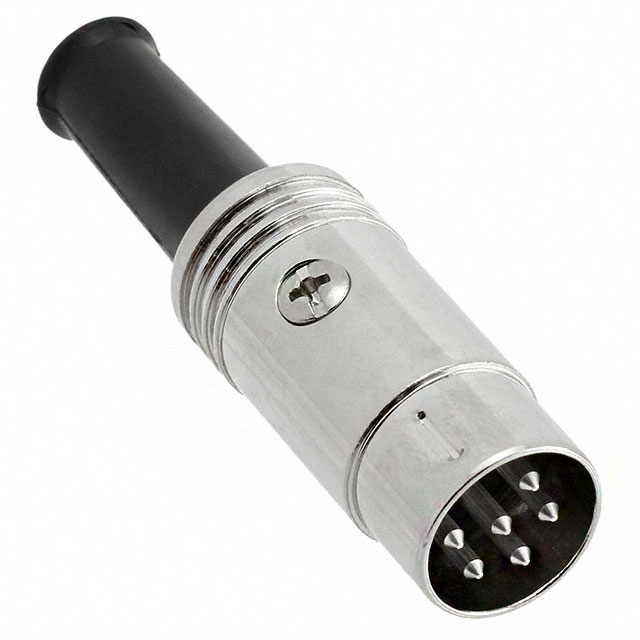

12BL6MX

Active

Switchcraft Inc.

CONN CIRCULAR DIN PIN 6 POS ST CABLE MOUNT 6 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR DIN PIN 6 POS ST CABLE MOUNT 6 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	12BL6MX

Backshell Material, Plating	Nickel, Die Cast
Color	Silver
Connector Type	Plug, Male Pins
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Orientation	6
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN (240 Degree)
Termination	Solder

Part	Shell Size - Insert	Fastening Type	Voltage Rating	Orientation	Features	Current Rating (Amps)	Primary Material	Shell Material	Color	Backshell Material, Plating	Mounting Type	Insert Material	Shell Finish	Connector Type	Termination	Number of Positions	Orientation
Switchcraft Inc. 12BL5M	DIN (240 Degree)	Push-Pull	34 V	4	Backshell Cable Clamp Strain Relief	3 A	Metal	Zinc Die Cast	Silver	Die Cast Nickel	Free Hanging (In-Line)	Plastic	Nickel	Male Pins Plug	Solder
Switchcraft Inc. 12BL6MX	DIN (240 Degree)	Push-Pull			Backshell Cable Clamp Strain Relief		Metal	Zinc Die Cast	Silver	Die Cast Nickel	Free Hanging (In-Line)	Plastic	Nickel	Male Pins Plug	Solder	6	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Male Pins Solder
