LDD240-WU
ActiveEOS Power India Private Ltd

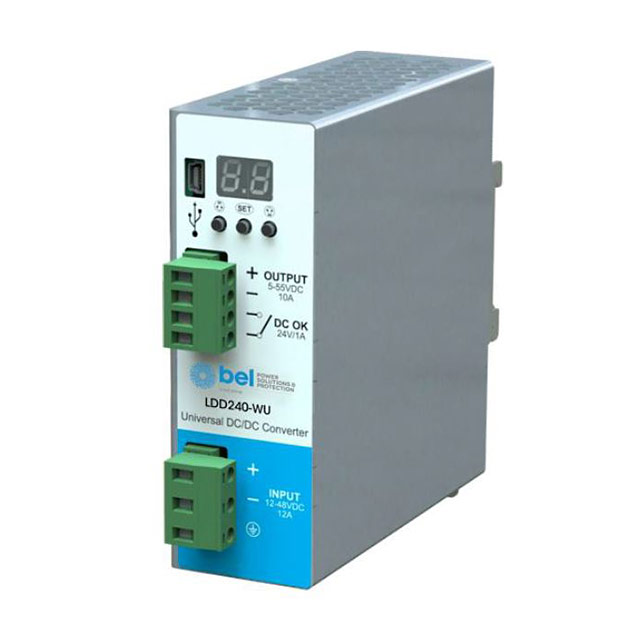

DC/DC DIN RAIL SUPPLY 5-55V 240W
Deep-Dive with AI
Search across all available documentation for this part.
LDD240-WU
ActiveEOS Power India Private Ltd
DC/DC DIN RAIL SUPPLY 5-55V 240W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD240-WU |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| DC Voltage - Input (Max) [Max] | 55 V |
| DC Voltage - Input (Min) [Min] | 11 V |
| Efficiency | 92 % |
| Features | Adjustable Output |
| Input Type | DC |
| Number of Outputs | 1 |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.33 in |
| Size / Dimension [x] | 110 mm |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [z] | 115 mm |
| Size / Dimension [z] | 4.53 " |
| Voltage - Isolation | 4.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 506 | $ 400.30 | |
Description
General part information
LDD240 Series
DC/DC DIN RAIL SUPPLY 5-55V 240W
Documents
Technical documentation and resources
No documents available
