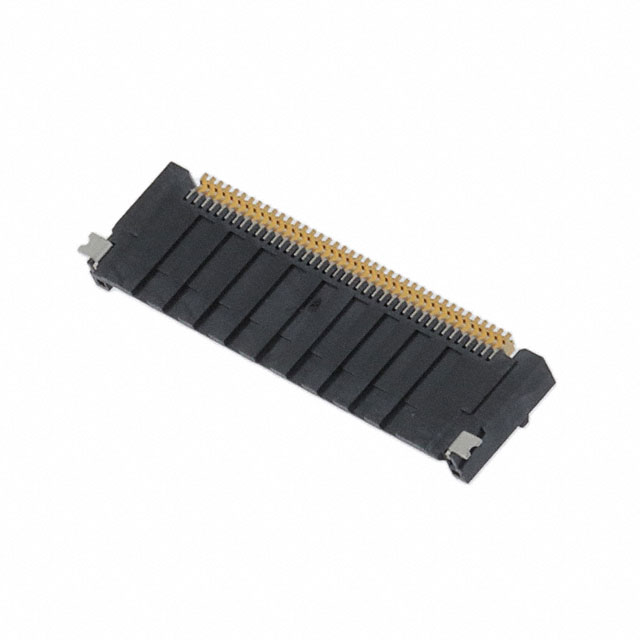

TF46-40S-0.5SH(800)
ActiveHirose Electric USA, Inc.
0.5MM PITCH, 2.44MM HEIGHT, BACK-FLIP, TOP & BOTTOM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TF46-40S-0.5SH(800)
ActiveHirose Electric USA, Inc.
0.5MM PITCH, 2.44MM HEIGHT, BACK-FLIP, TOP & BOTTOM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TF46-40S-0.5SH(800) |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tabbed |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.25 Áin |
| Contact Finish Thickness | 0.03 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.087 in |
| Height Above Board | 2.2 mm |
| Housing Color | Black |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock, Backlock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.48 | |
| 10 | $ 2.16 | |||
| 25 | $ 2.07 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.75 | |||
| 500 | $ 1.61 | |||
| Digi-Reel® | 1 | $ 2.48 | ||
| 10 | $ 2.16 | |||
| 25 | $ 2.07 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.75 | |||
| 500 | $ 1.61 | |||
| Tape & Reel (TR) | 1500 | $ 1.31 | ||
| 3000 | $ 1.22 | |||
| 4500 | $ 1.18 | |||
| 7500 | $ 1.14 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 2.06 | |
| 7500 | $ 1.82 | |||
Description
General part information
TF46 Series
40 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
