317-012-542-803

Active

EDAC Inc.

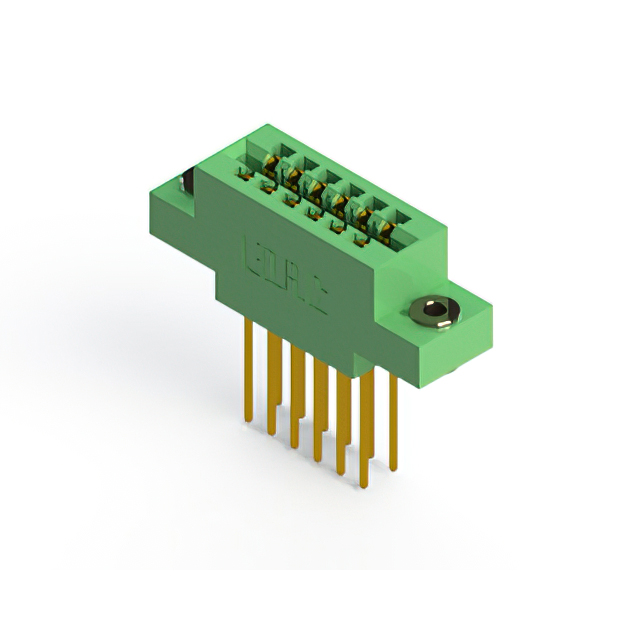

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Search across all available documentation for this part.

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	317-012-542-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap

Part	Number of Positions/Bay/Row [custom]	Color	Contact Material	Number of Positions	Gender	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Number of Rows	Contact Type	Contact Finish	Pitch [x]	Pitch [x]	Material - Insulation	Mounting Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-012-541-608	12	Green	Copper Alloy	24	Female	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-65 ░C	4-40 Threaded Insert Top Mount Opening	2	Cantilever	Gold	0.156 in	3.96 mm	Diallyl Phthalate (DAP)	Through Hole	Single	10 Áin	0.25 Ám	Wire Wrap
EDAC Inc. 317-012-542-804	6	Green	Copper Alloy	12	Female	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-65 ░C	Top Mount Opening Unthreaded	2	Cantilever	Gold	0.156 in	3.96 mm	Diallyl Phthalate (DAP)	Through Hole	Dual	10 Áin	0.25 Ám	Wire Wrap	0.156 in	3.96 mm
EDAC Inc. 317-012-542-803	6	Green	Copper Alloy	12	Female	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-65 ░C	Floating Bobbin Flush Mount	2	Cantilever	Gold	0.156 in	3.96 mm	Diallyl Phthalate (DAP)	Through Hole	Dual	10 Áin	0.25 Ám	Wire Wrap	0.116 in	2.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
