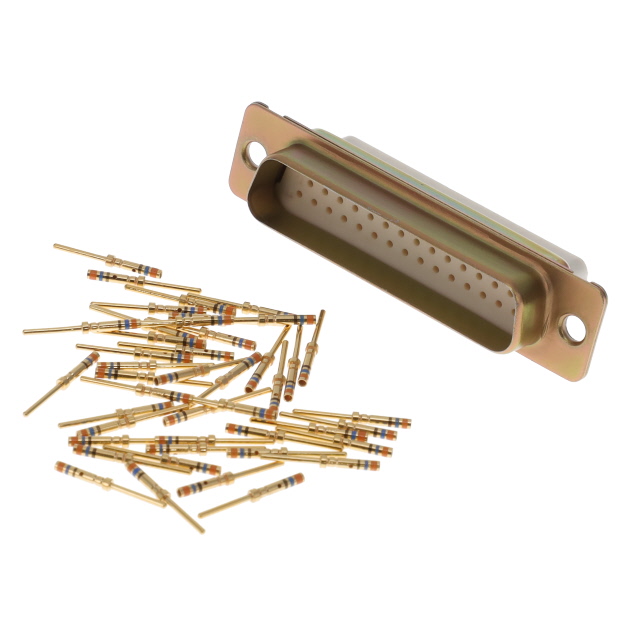

M24308/4-13F
ActiveAmphenol Interconnect India
DSUB CONN,CRIMP, PLUG, CADMIUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/4-13F
ActiveAmphenol Interconnect India
DSUB CONN,CRIMP, PLUG, CADMIUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/4-13F |
|---|---|
| Color | Natural |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Cadmium Plated, Steel |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
| Termination | Crimp |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.21 | |
| 10 | $ 40.98 | |||
| 25 | $ 38.41 | |||
| 50 | $ 36.58 | |||
| 100 | $ 34.84 | |||
| 250 | $ 32.77 | |||
| Tray | 1 | $ 44.32 | ||
| 10 | $ 38.81 | |||
| 25 | $ 37.13 | |||
| 40 | $ 35.94 | |||
| 80 | $ 34.74 | |||
| 230 | $ 32.82 | |||
Description
General part information
M24308/4 Series
44 Position D-Sub, High Density Plug, Male Pins Connector
