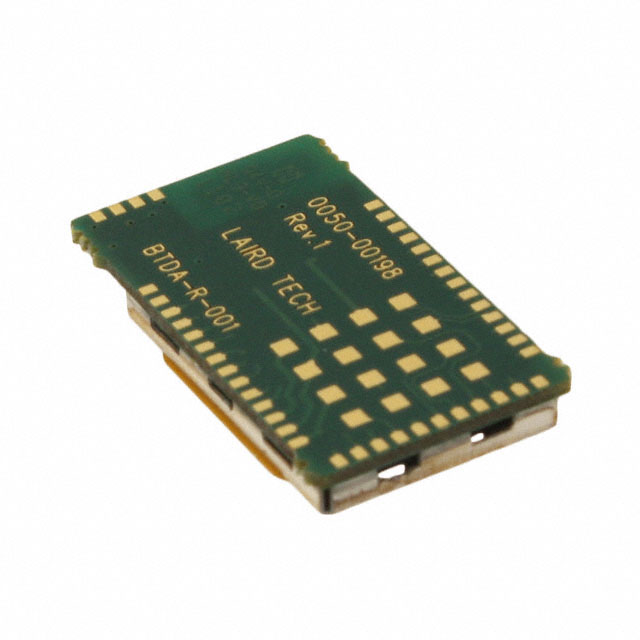

BTM411-03
Ezurio LLC
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSelection Guide
BTM411-03
Ezurio LLC
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsSelection Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | BTM411-03 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 40 mA |
| Current - Transmitting | 40 mA |
| Data Rate | 2.1 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v2.1 +EDR |
| RF Family/Standard | Bluetooth |
| Sensitivity | -84 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | BlueCore4 |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.15 | |
Description
General part information
BTM411 Series
Bluetooth Bluetooth v2.1 +EDR Transceiver Module 2.4GHz Integrated, Chip Surface Mount
