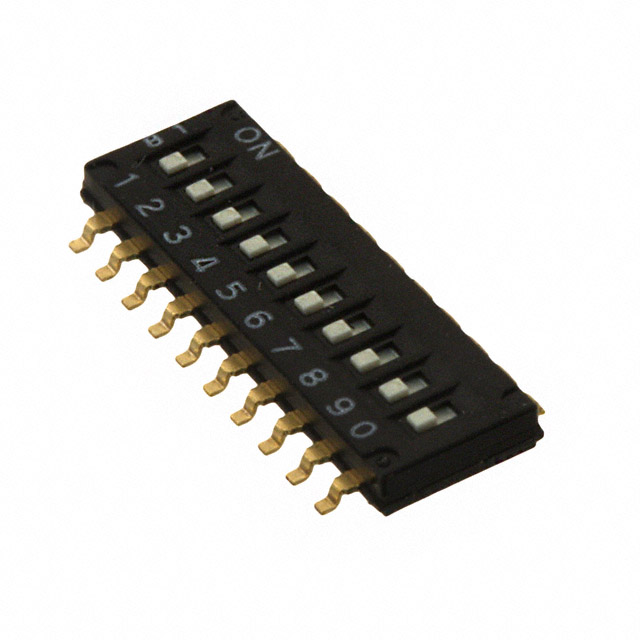

6HF-0102-P
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
6HF-0102-P
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6HF-0102-P |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 1000 Cycles |
| Features | Tape Seal |
| Height Above Board [z] | 0.091 in |
| Height Above Board [z] | 2.3 mm |
| Length [x] | 0.544 in |
| Length [x] | 13.82 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.89 | |
| 10 | $ 4.69 | |||
| 25 | $ 4.28 | |||
| 100 | $ 3.71 | |||
| 250 | $ 3.36 | |||
| 500 | $ 3.12 | |||
| 1000 | $ 2.89 | |||
| Digi-Reel® | 1 | $ 4.89 | ||
| 10 | $ 4.69 | |||
| 25 | $ 4.28 | |||
| 100 | $ 3.71 | |||
| 250 | $ 3.36 | |||
| 500 | $ 3.12 | |||
| 1000 | $ 2.89 | |||
| Tape & Reel (TR) | 2000 | $ 2.65 | ||
Description
General part information
6HF Series
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
