Technical Specifications
Parameters and characteristics for this part
| Specification | W2G130-AA09-01 |
|---|---|
| Air Flow | 203 CFM |
| Air Flow | 5.68 mł/min |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 51 dB(A) |
| Power (Watts) | 14 Watts |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 150 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 56 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 997.9 g |
| Weight | 2.2 lbs |
| Width [y] | 55 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 171.13 | |
Description
General part information
W2G130 Series

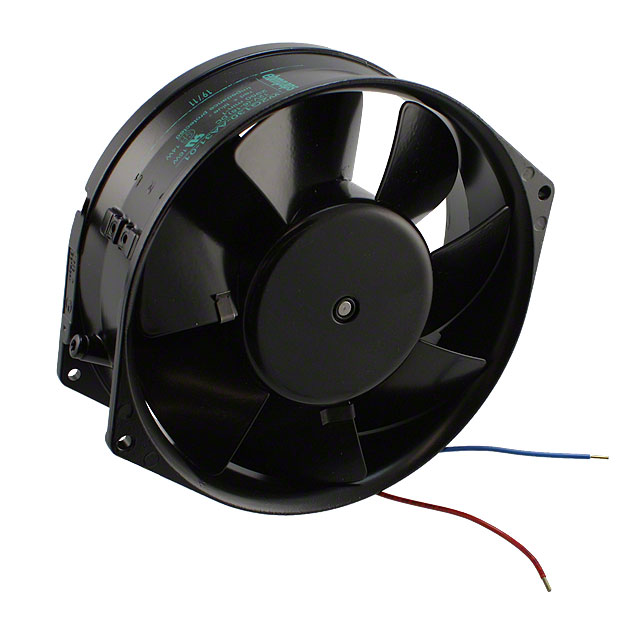

Fan Tubeaxial 48VDC Round - 150mm Dia Ball 203.0 CFM (5.68m³/min) 2 Wire Leads
