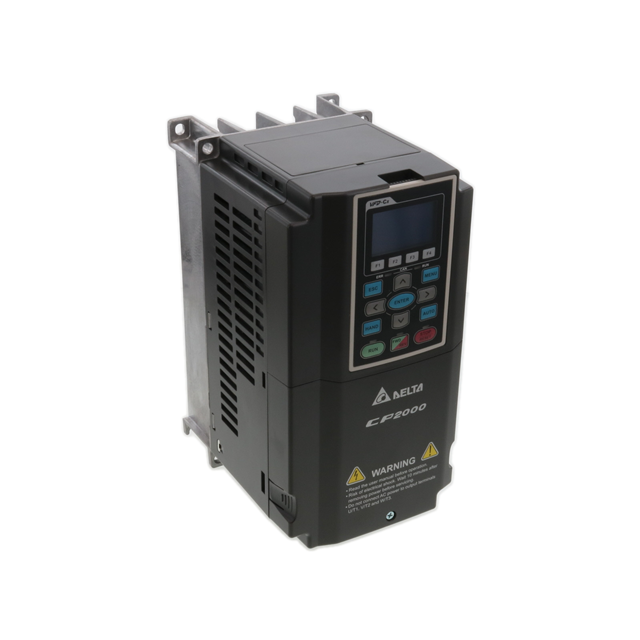

VFD015CP23A-21

Active

Delta Electronics/Industrial Automation

VFD-CP2000, 2HP 230V, 3PHASE INP

Search across all available documentation for this part.

Active

Delta Electronics/Industrial Automation

VFD-CP2000, 2HP 230V, 3PHASE INP

Technical Specifications

Parameters and characteristics for this part

Specification	VFD015CP23A-21

Current - Output	7.5 A
Interface	CAN
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Voltage - Supply	230 VAC
Wattage - Load	1.5 kW

Part	Mounting Type	Voltage - Supply	Wattage - Load	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Interface	Current - Output
Delta Electronics/Industrial Automation VFD015C43A	Chassis Mount	460 VAC	1.5 kW	-10 °C	50 °C	CAN	4 A
Delta Electronics/Industrial Automation VFD015EL21A	Chassis Mount DIN Rail	230 VAC	1.5 kW	-10 °C	50 °C	RS-485	7.5 A
Delta Electronics/Industrial Automation VFD015C23A	Chassis Mount	230 VAC	1.5 kW	-10 °C	50 °C	CAN	8 A
Delta Electronics/Industrial Automation VFD015EL43A	Chassis Mount DIN Rail	460 VAC	1.5 kW	-10 °C	50 °C	RS-485	4.2 A
Delta Electronics/Industrial Automation VFD015CP23A-21	Chassis Mount	230 VAC	1.5 kW	-10 °C	50 °C	CAN	7.5 A
Delta Electronics/Industrial Automation VFD015EL23A	Chassis Mount DIN Rail	230 VAC	1.5 kW	-10 °C	50 °C	RS-485	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

VFD-CP2000, 2HP 230V, 3PHASE INP

Technical documentation and resources

No documents available
