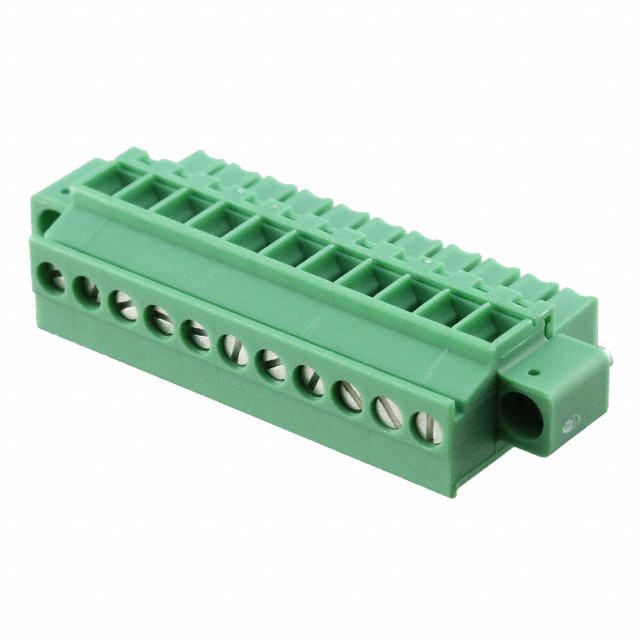

PLUGGABLE TERMINAL BLOCKS 11 POS 3.5MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1863097 +1

1863097

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 11 POS 3.5MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet 1863097 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1863097

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Features	Mating Flange
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.752 "
Insulation Height	19.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	11
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Plug Wire Entry	270 °
Positions Per Level	11
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm
Torque - Screw [Min]	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²
Wire Strip Length	7 mm

MCVW Series

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw

Part	Current - IEC	Material Flammability Rating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Number of Levels	Voltage - IEC	Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Positions Per Level	Mounting Type	Termination Style	Screw Size	Voltage - UL	Insulation Height	Insulation Height	Color	Number of Positions	Contact Mating Finish	Pitch [x]	Pitch [x]	Plug Wire Entry	Wire Strip Length	Housing Material	Number of Positions	Features	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1827075	8 A	UL94 V-0	14 AWG	30 AWG	8 A	1	320 V	Plug Female Sockets	0.14 mm²	1.5 mm²	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	12	Free Hanging (In-Line)	Screw - Rising Cage Clamp	M2	300 V	0.752 "	19.1 mm	Green	12	Tin	0.15 in	3.81 mm	270 °	7 mm	Polyamide (PA) Nylon
Phoenix Contact 1863149	8 A	UL94 V-0	14 AWG	30 AWG	8 A	1	320 V	Plug Female Sockets			2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	16	Free Hanging (In-Line)	Screw - Rising Cage Clamp	M2	300 V	0.752 "	19.1 mm	Green		Tin	0.138 in	3.5 mm	270 °	7 mm	Polyamide (PA) Nylon	16	Mating Flange	0.14 mm˛	1.5 mm˛
Phoenix Contact 1863107	8 A	UL94 V-0	14 AWG	30 AWG	8 A	1	320 V	Plug Female Sockets	0.14 mm²	1.5 mm²	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	12	Free Hanging (In-Line)	Screw - Rising Cage Clamp	M2	300 V	0.752 "	19.1 mm	Green	12	Tin	0.138 in	3.5 mm	270 °	7 mm	Polyamide (PA) Nylon		Mating Flange
Phoenix Contact 1863097	8 A	UL94 V-0	14 AWG	30 AWG	8 A	1	320 V	Plug Female Sockets	0.14 mm²	1.5 mm²	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	11	Free Hanging (In-Line)	Screw - Rising Cage Clamp	M2	300 V	0.752 "	19.1 mm	Green	11	Tin	0.138 in	3.5 mm	270 °	7 mm	Polyamide (PA) Nylon		Mating Flange
Phoenix Contact 1827017	8 A	UL94 V-0	14 AWG	30 AWG	8 A	1	320 V	Plug Female Sockets	0.14 mm²	1.5 mm²	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	6	Free Hanging (In-Line)	Screw - Rising Cage Clamp	M2	300 V	0.752 "	19.1 mm	Green	6	Tin	0.15 in	3.81 mm	270 °	7 mm	Polyamide (PA) Nylon
