Technical Specifications
Parameters and characteristics for this part
| Specification | RBB10-2.0 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 96 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 25-BLGA Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 0.15 " |
| Size / Dimension [z] | 3.8 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.3 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.97 | |
| 5 | $ 10.88 | |||
| 10 | $ 10.80 | |||
| 25 | $ 10.63 | |||
| 50 | $ 10.30 | |||
| 100 | $ 9.41 | |||
| 250 | $ 9.14 | |||
| Digi-Reel® | 1 | $ 10.97 | ||
| 5 | $ 10.88 | |||
| 10 | $ 10.80 | |||
| 25 | $ 10.63 | |||
| 50 | $ 10.30 | |||
| 100 | $ 9.41 | |||
| 250 | $ 9.14 | |||
| Tape & Reel (TR) | 500 | $ 8.97 | ||
| Newark | Each | 250 | $ 9.68 | |
| Sager | N/A | 1 | $ 10.97 | |
| 5 | $ 10.60 | |||
| 10 | $ 10.12 | |||
| 25 | $ 9.82 | |||
| 50 | $ 9.67 | |||
| 100 | $ 9.41 | |||
| 250 | $ 8.79 | |||
Description
General part information

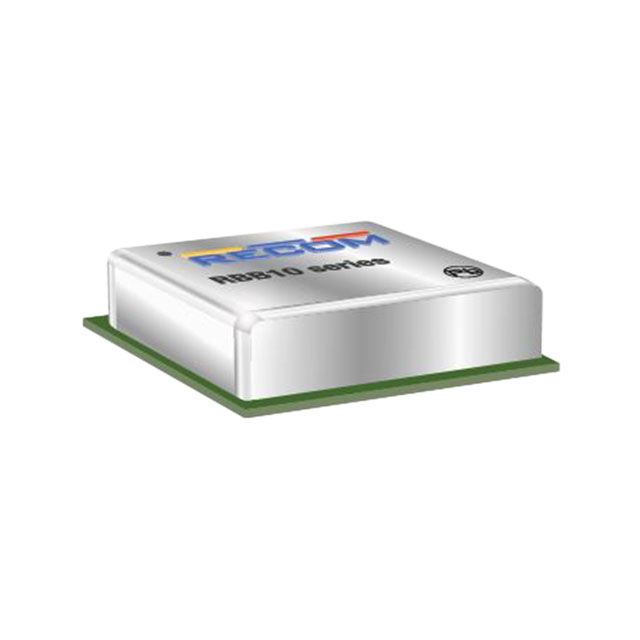

RBB10-2.0 Series
Non-Isolated DC/DC Converters 2.3-5.5Vin 05Vout 2A
