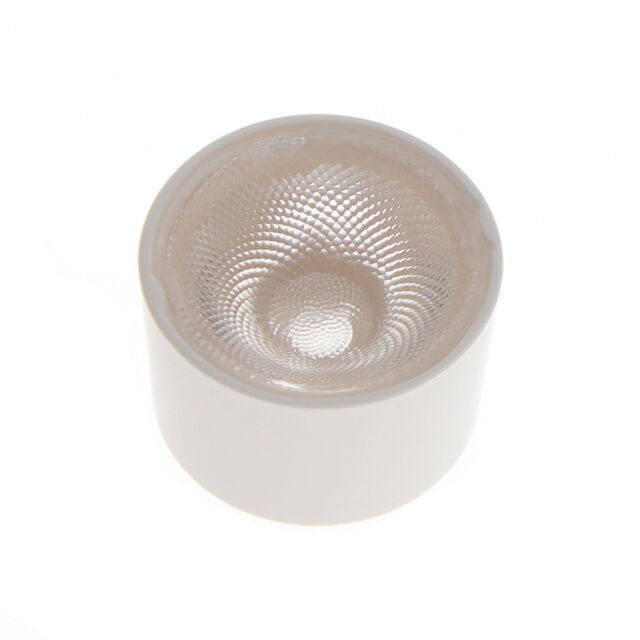

CA18486_LEILA-Y-WW-WHT
ActiveLEDiL
ASSEMBLY ROUND 1 POS 21.6MM (D) 14.80MM(/ 4 [TAPE SHEET] ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA18486_LEILA-Y-WW-WHT
ActiveLEDiL
ASSEMBLY ROUND 1 POS 21.6MM (D) 14.80MM(/ 4 [TAPE SHEET] ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA18486_LEILA-Y-WW-WHT |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Cree, Nichia |
| Lens Size [diameter] | 21.6 mm |
| Material | Acrylic |
| Mounting Type | Adhesive Tape |
| Number of LEDs | 1 |
| Optical Pattern | Medium |
| Type | Lens With Holder |
| Viewing Angle [Max] | 62 ° |
| Viewing Angle [Min] | 52 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CA18486 Series
Lens With Holder Clear 52° ~ 62° Medium Adhesive Tape
