09140240301

Active

HARTING Technology Group

HAN MODULAR FRAME 24 HOOD 6 MODUL E, A-F ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN MODULAR FRAME 24 HOOD 6 MODUL E, A-F ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Material	Number of Modules	Size	Gender	Frame Type	Includes	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09140240313	Zinc Die Cast	6	24 B	Female	Hinged Retaining Frame	1 Frame 4 Screws	125 °C	-40 °C
HARTING Technology Group 09140240301	Zinc Die Cast	6	24 B	Female Male	Fixed Frame		125 °C	-40 °C
HARTING Technology Group 09140240303	Zinc Die Cast	6	24 B	Male	Hinged Retaining Frame	1 Frame 4 Screws	125 °C	-40 °C
HARTING Technology Group 09140240305			24 B		Hinged Retaining Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

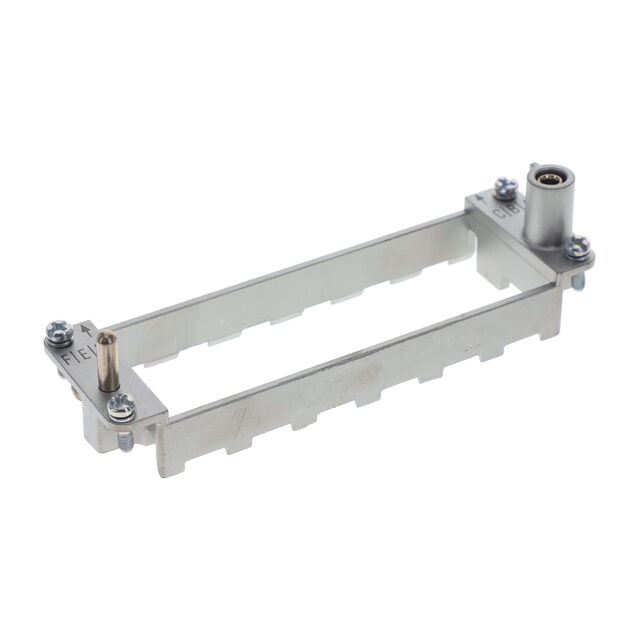

6 Module Female/Male Heavy Duty Fixed Frame Size 24B
