12TL1-2

Active

Honeywell Sensing and Productivity Solutions

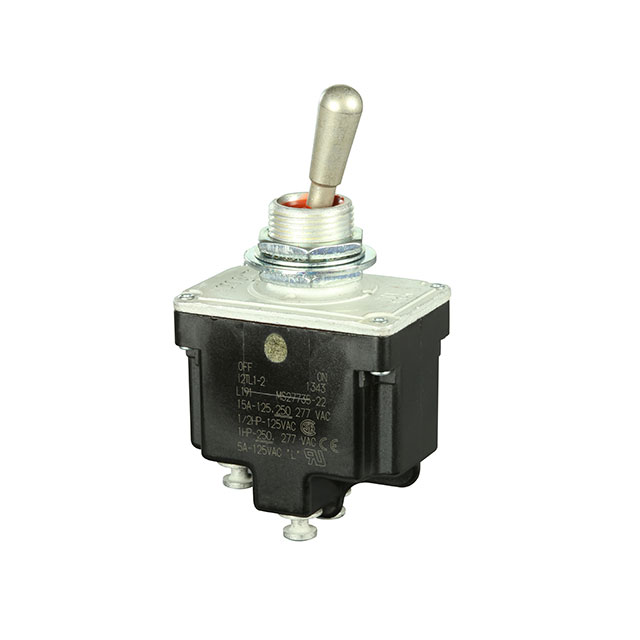

SWITCH TOGGLE DPST 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	12TL1-2

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST
Current Rating (Amps)	15 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Off
Termination Style	Solder Turret
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Voltage Rating - AC	Termination Style	Circuit	Actuator Type	Current Rating (Amps)	Bushing Thread	Actuator Material	Switch Function	Actuator Length [x]	Ingress Protection	Features
Honeywell Sensing and Productivity Solutions 12TL1-2D	12.4 mm	71 °C	-65 ░C	Non-Illuminated	125 V	Solder Turret	DPST	Locking Lever	15 A	15/32-32	Nickel Plated	On-Off	26.67 mm	Environment Sealed
Honeywell Sensing and Productivity Solutions 12TL1-8	12.4 mm	71 °C	-65 ░C	Non-Illuminated	125 V	Solder Turret	DPDT	Standard Round	10 A	15/32-32	Nickel Plated	On-Mom	17.27 mm	Environment Sealed
Honeywell Sensing and Productivity Solutions 12TL1-10	12.4 mm	71 °C	-65 ░C	Non-Illuminated	125 V	Solder Turret	SP3T	Standard Round	15 A	15/32-32	Nickel Plated	On-On-On	17.27 mm	Environment Sealed	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 12TL1-70	12.4 mm	71 °C	-65 ░C	Non-Illuminated	125 V	Solder Turret	DPDT	Standard Round	10 A	15/32-32	Nickel Plated	Mom-On-Mom	17.27 mm	Environment Sealed
Honeywell Sensing and Productivity Solutions 12TL1-2	12.4 mm	71 °C	-65 ░C	Non-Illuminated	125 V	Solder Turret	DPST	Standard Round	15 A	15/32-32	Nickel Plated	On-Off	17.27 mm	Environment Sealed
Honeywell Sensing and Productivity Solutions 12TL1-31M	12.4 mm	71 °C	-65 ░C	Non-Illuminated	125 V	Solder Turret	DPDT	Locking Lever	15 A	15/32-32	Nickel Plated	On-On	26.67 mm	Environment Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPST Panel Mount
