SX8674ICSTRT

Obsolete

Semtech Corporation

IC SCREEN CNTRL 12BIT 19WLCSP

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC SCREEN CNTRL 12BIT 19WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	SX8674ICSTRT

Current - Supply	120 µA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

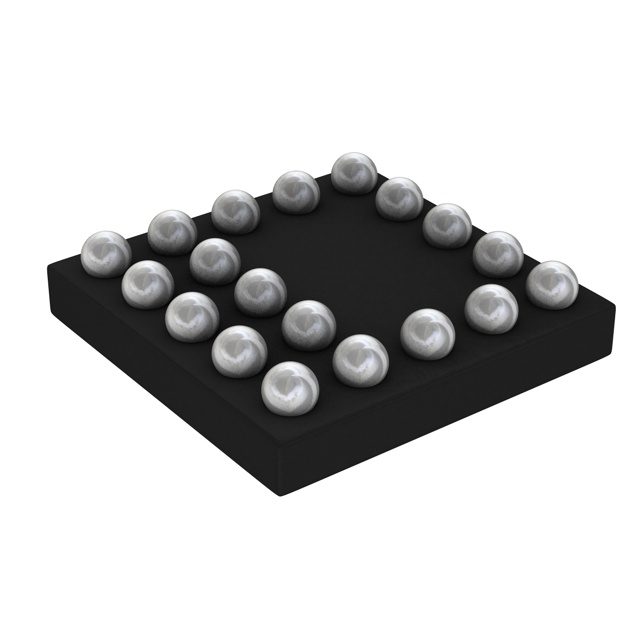

Package / Case	19-UFBGA, WLCSP
Resolution (Bits)	12 b
Supplier Device Package	19-WLCSP (2.07x2.07)
Touchscreen	5 Wire Resistive, 4 Wire Resistive
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.3 V
Voltage Reference	Internal

Part	Voltage Reference	Package / Case	Resolution (Bits)	Touchscreen	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Supply
Semtech Corporation SX8677IWLTRT	Internal	20-WFQFN Exposed Pad	12 b	4 Wire Resistive 5 Wire Resistive	2.3 V	3.6 V	Surface Mount	85 °C	-40 °C	20-QFN (4x4)	120 µA
Semtech Corporation SX8674ICSTRT	Internal	19-UFBGA WLCSP	12 b	4 Wire Resistive 5 Wire Resistive	2.3 V	3.6 V	Surface Mount	85 °C	-40 °C	19-WLCSP (2.07x2.07)	120 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Touchscreen Controller 4 or 5 Wire Resistive 12 b I2C, Serial Interface 19-WLCSP (2.07x2.07)

Technical documentation and resources

No documents available
