UT002030SH
ActiveSouriau-Sunbank by Eaton

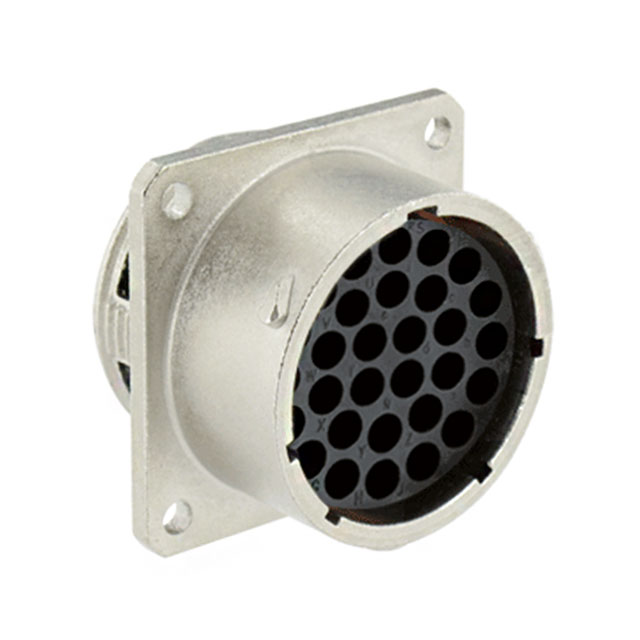

CONN RCPT HSG FMALE 30POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
UT002030SH
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG FMALE 30POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT002030SH |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp and Solder |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy, Halogen Free |
| Shell Size - Insert [Max] | 30 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Shielded |
| Type | For Female Sockets |
UT002 Series
| Part | Ingress Protection | Shell Material | Number of Positions | Contact Type | Shielding | Contact Shape | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Note | Shell Finish | Contact Size | Orientation | Insert Material | Mounting Feature | Fastening Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Housing Color | Material Flammability Rating | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | IP68 IP69K | Zinc Alloy Halogen Free | 28 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | N | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 28 | 20 | Silver | UL94 V-0 | For Male Pins |
Souriau-Sunbank by Eaton | IP68 IP69K | Zinc Alloy Halogen Free | 35 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | N | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 35 | 22 | Silver | UL94 V-0 | For Female Sockets |
Souriau-Sunbank by Eaton | Aluminum Alloy | 48 | Crimp | Shielded | Circular | Receptacle Housing | -55 °C | 125 °C | Contacts Not Included | Tin | 16 | N | Thermoplastic Glass Filled | Flange | Bayonet Lock | 48 | 24 | Silver | UL94 V-0 | For Male Pins | |
Souriau-Sunbank by Eaton | IP68 IP69K | Zinc Alloy Halogen Free | 35 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | N | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 35 | 22 | Silver | UL94 V-0 | For Male Pins |
Souriau-Sunbank by Eaton | IP67 - Dust Tight Waterproof | Zinc Alloy Halogen Free | 28 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | W | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 28 | 20 | Silver | UL94 V-0 | For Male Pins |
Souriau-Sunbank by Eaton | IP67 - Dust Tight Waterproof | Zinc Alloy Halogen Free | 48 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | X | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 48 | 24 | Silver | UL94 V-0 | For Female Sockets |
Souriau-Sunbank by Eaton | IP67 - Dust Tight Waterproof | Zinc Alloy Halogen Free | 28 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | N | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 28 | 20 | Silver | UL94 V-0 | For Female Sockets |
Souriau-Sunbank by Eaton | IP67 - Dust Tight Waterproof | Zinc Alloy Halogen Free | 30 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | N | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 30 | 20 | Silver | UL94 V-0 | For Female Sockets |
Souriau-Sunbank by Eaton | IP67 - Dust Tight Waterproof | Zinc Alloy Halogen Free | 35 | Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | Z | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 35 | 22 | Silver | UL94 V-0 | For Female Sockets |
Souriau-Sunbank by Eaton | IP67 - Dust Tight Waterproof | Zinc Alloy Halogen Free | 35 | Crimp Crimp and Solder | Shielded | Circular | Receptacle Housing | -40 °C | 105 ░C | Contacts Not Included | Nickel | 16 | Z | Polyamide (PA66) Nylon 6/6 | Flange | Bayonet Lock | 35 | 22 | Silver | UL94 V-0 | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UT002 Series
30 Position Circular Connector Receptacle Housing Panel Mount
