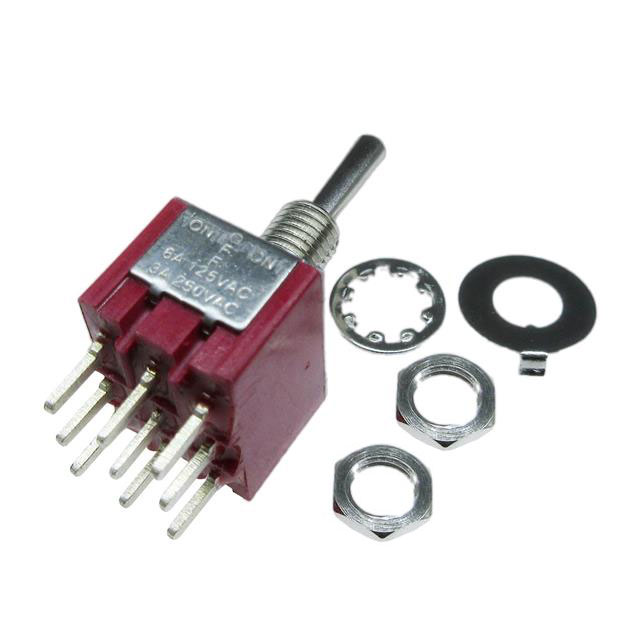

SW-T2-6E-B-A2-M3

Active

Adam Tech

SWITCH TOGGLE 3PDT 6A 125V

Search across all available documentation for this part.

Active

Adam Tech

SWITCH TOGGLE 3PDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SW-T2-6E-B-A2-M3

Actuator Length [x]	11 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	3PDT
Current Rating (Amps)	6 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	6 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Current Rating (Amps)	Bushing Thread	Voltage Rating - AC	Switch Function	Actuator Length [x]	Circuit	Illumination	Electrical Life	Actuator Material	Actuator Type	Panel Cutout Dimensions [diameter]
Adam Tech SW-T2-4G-B-A2-MA2	-25 °C	85 °C	PC Pin	6 A	M6 x 0.75	125 V	Mom-Off-Mom	11 mm	DPDT	Non-Illuminated	10000 Cycles	Brass Nickel Plated	Standard Round
Adam Tech SW-T2-4G-A-A2-MA2	-25 °C	85 °C	Solder Lug	6 A	M6 x 0.75	125 V	Mom-Off-Mom	11 mm	DPDT	Non-Illuminated	10000 Cycles	Brass Nickel Plated	Standard Round	6 mm
Adam Tech SW-T2-6E-B-A2-M3	-25 °C	85 °C	PC Pin	6 A	M6 x 0.75	125 V	On-Off-On	11 mm	3PDT	Non-Illuminated	10000 Cycles	Brass Nickel Plated	Standard Round	6 mm
Adam Tech SW-T2-6B-A-A2-M3	-25 °C	85 °C	Solder Lug	6 A	M6 x 0.75	125 V	On-On	11 mm	DPDT	Non-Illuminated	10000 Cycles	Brass Nickel Plated	Standard Round	6 mm
